Electrical

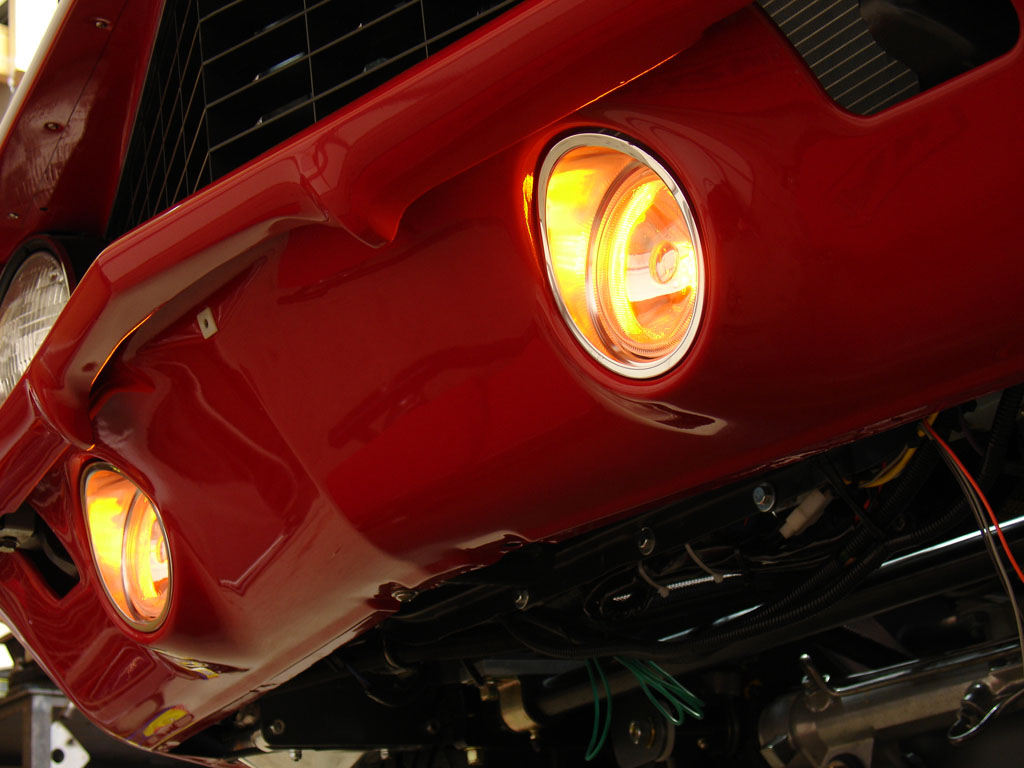

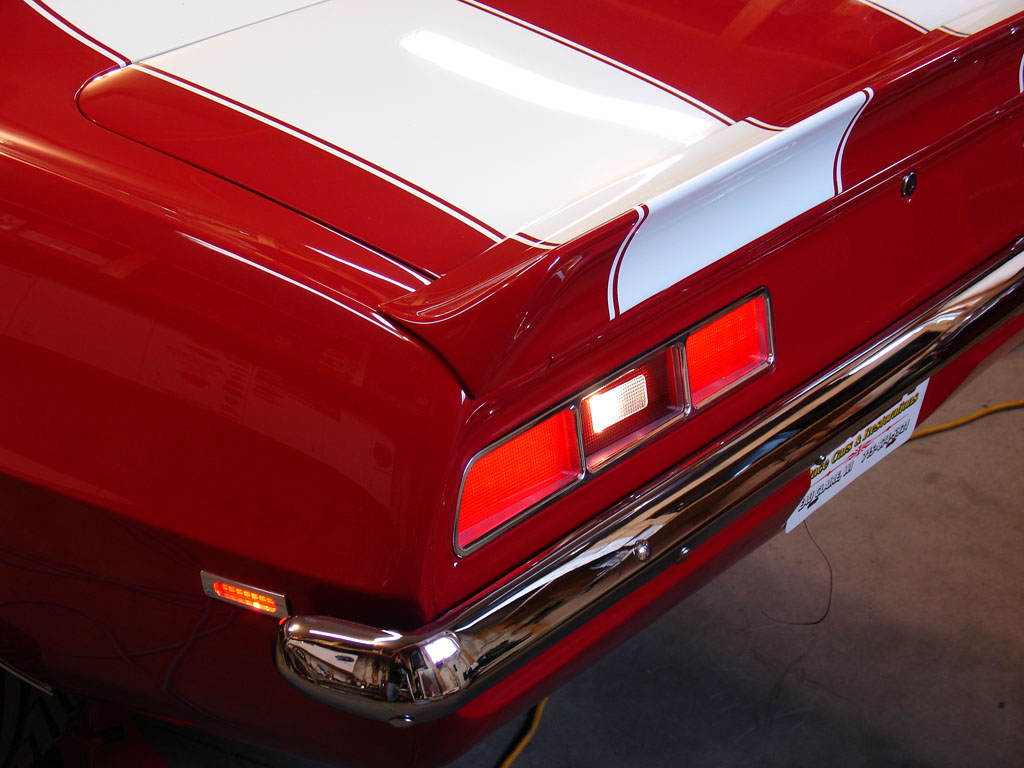

Progess on the wiring, marker lights and reverse light test:



Digitails LED tail lights:

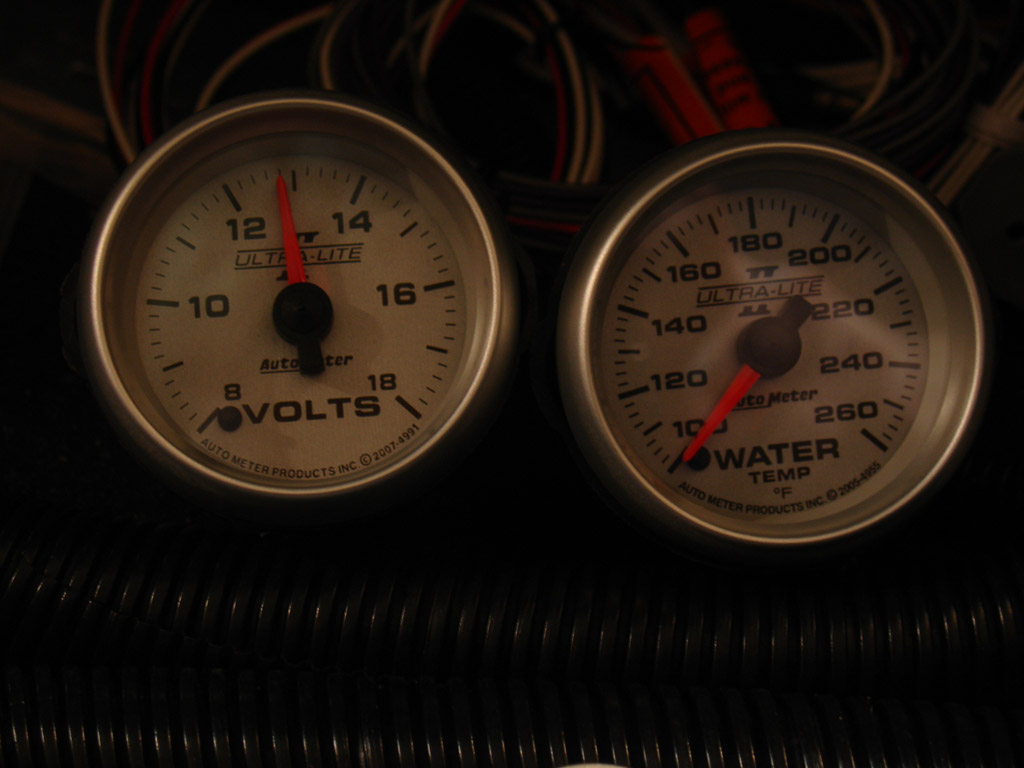

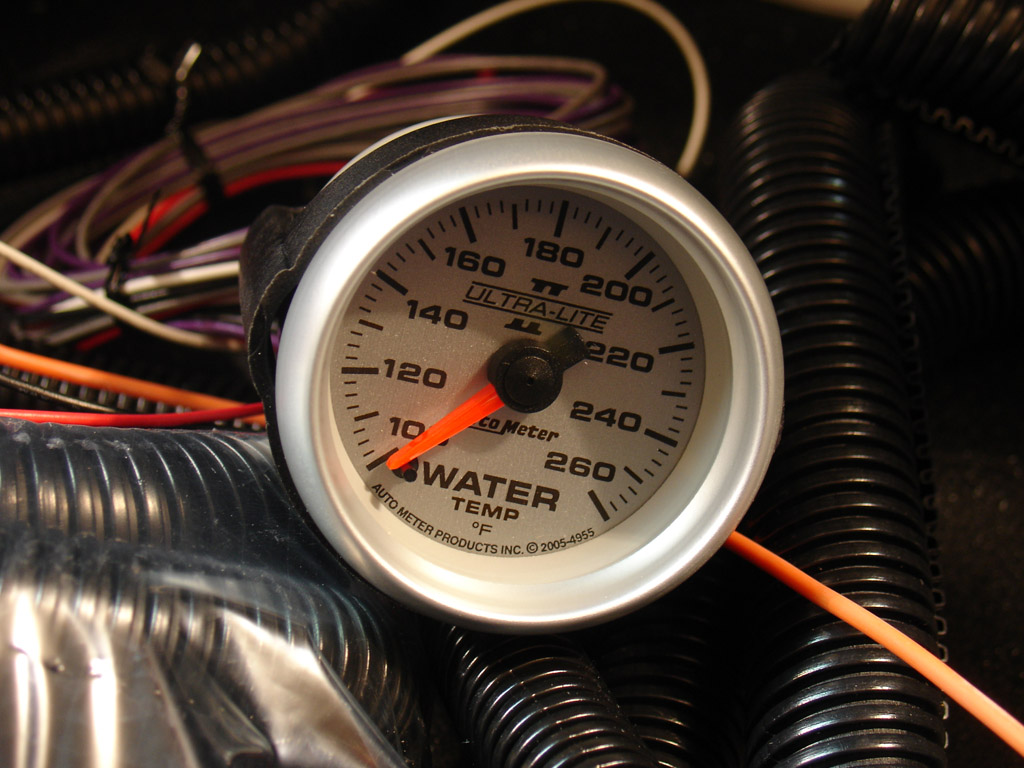

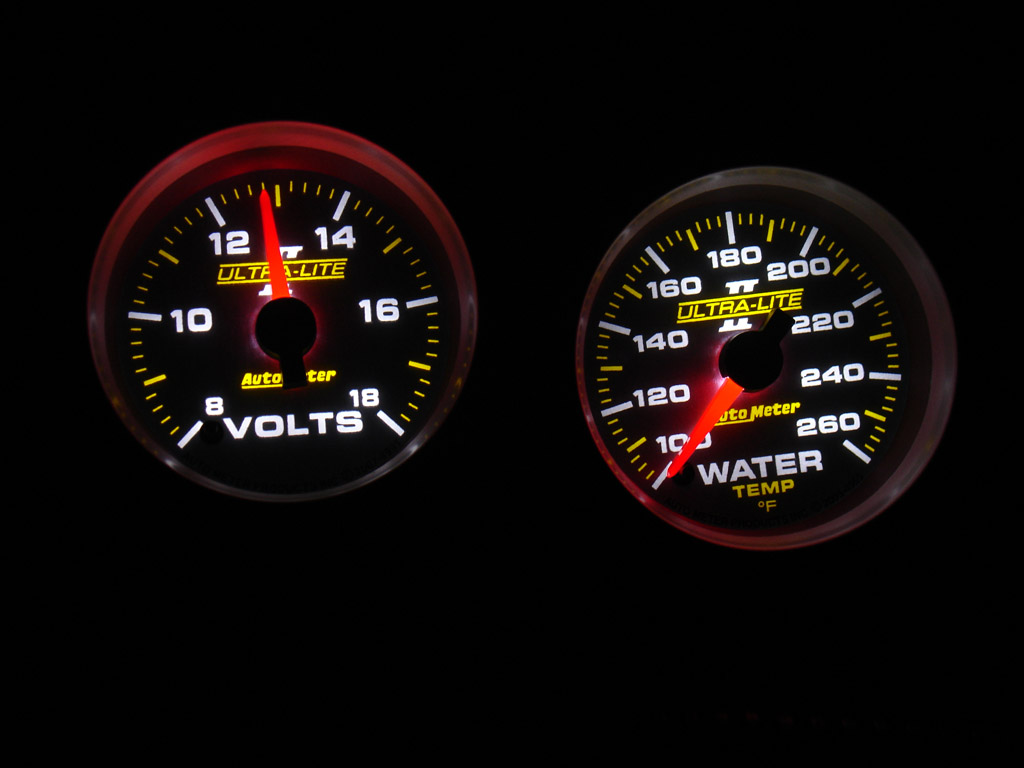

Lighting test for the new Auto Meter Ultra Lite II gauges which use LED lighting.



E38 ECM from Speartech with throttle by wire.

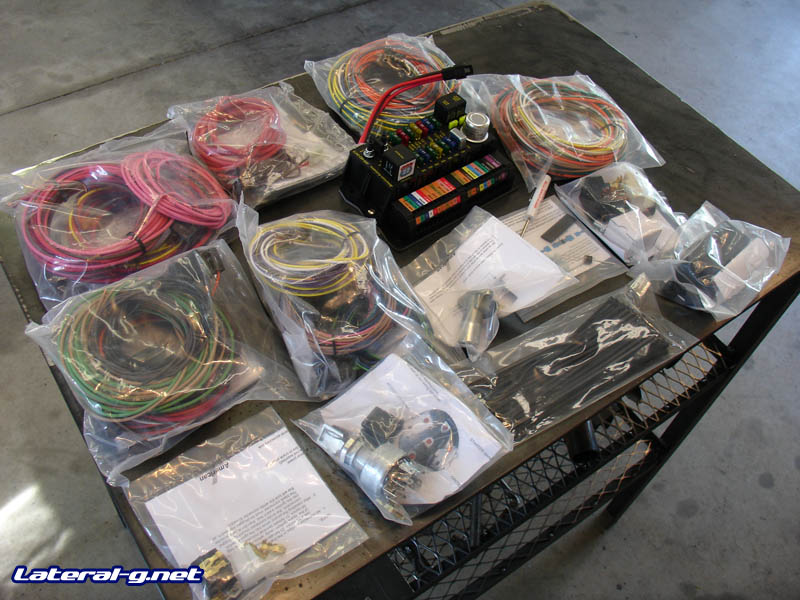

I'm using an American Autowire Classic Update kit.

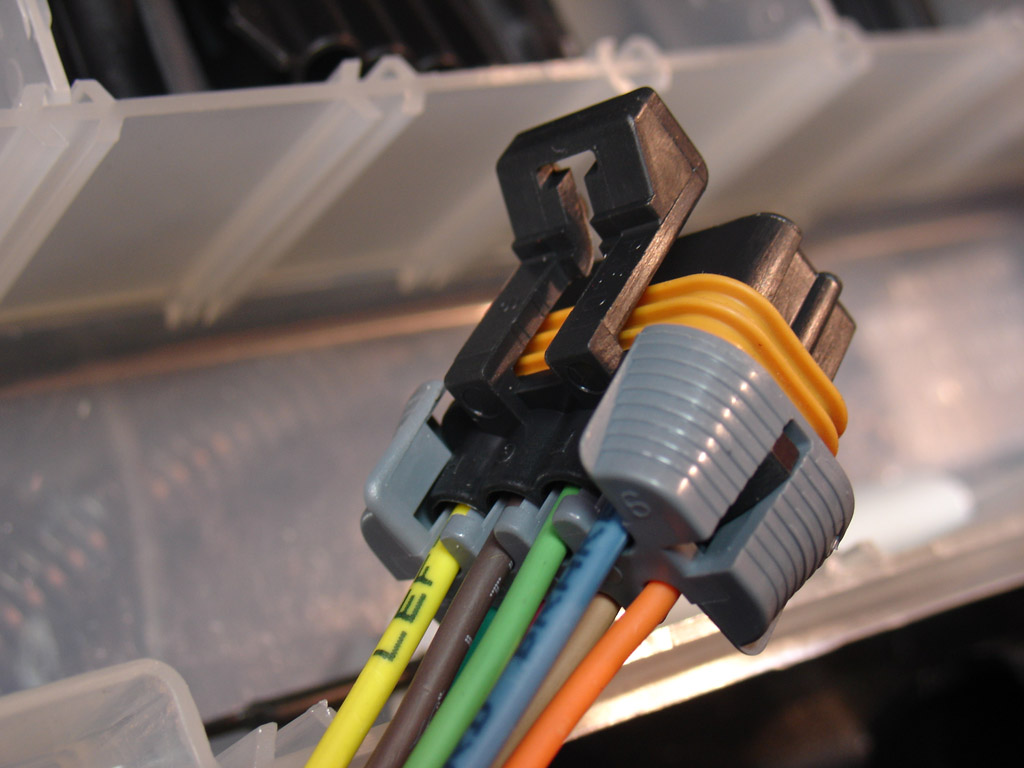

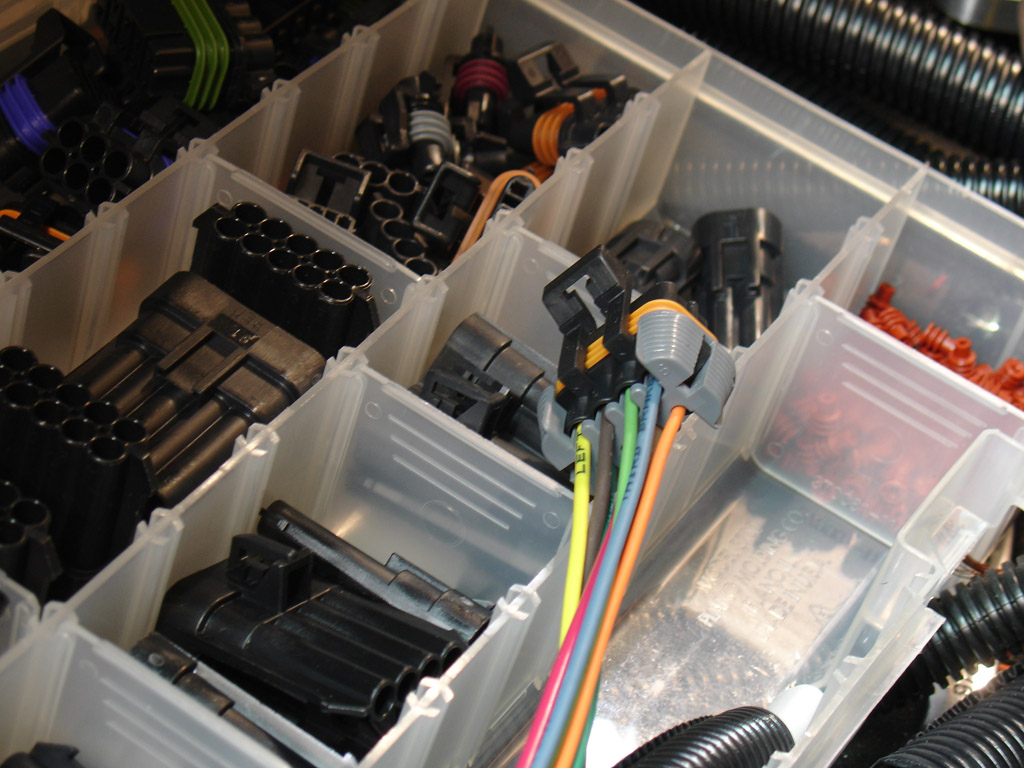

I'm using metripak connectors for most of the connections.

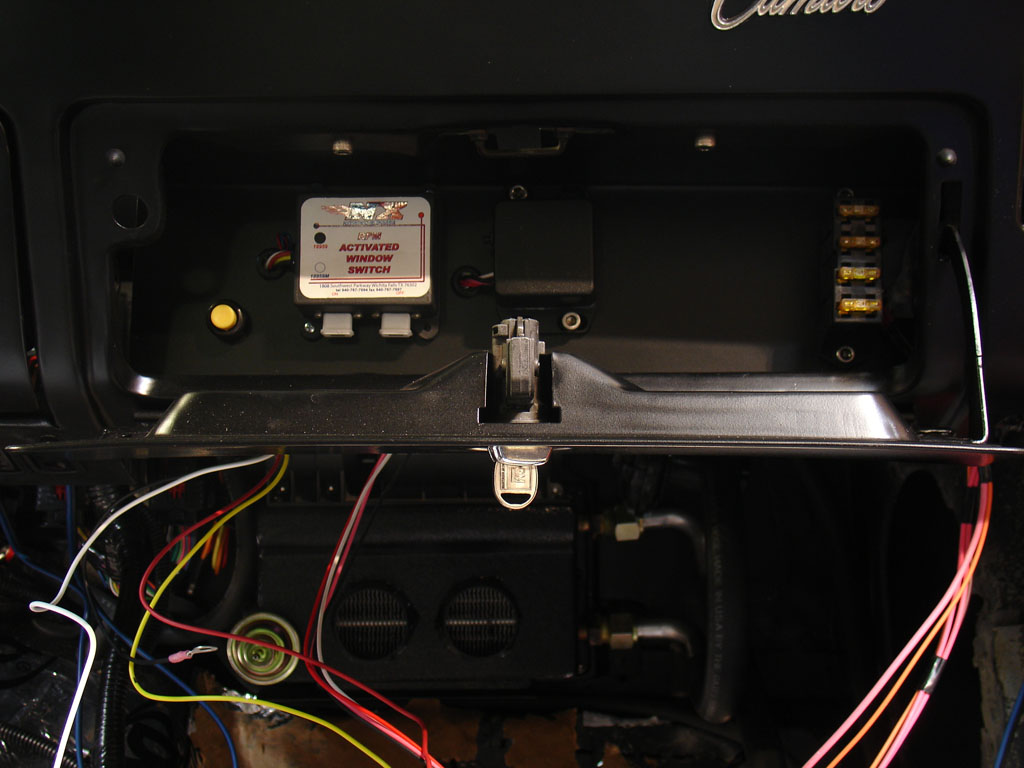

I removed the glovebox and fab'd a sheetmetal insert to mount the electric trunk release button, NX window switch, NX throttle position sensor module for sensing WOT on the throttle by wire, and a place to mount the fuse block for the ECM, fuel pump, etc.  I'll probably mount the OBDII connector inside as well.

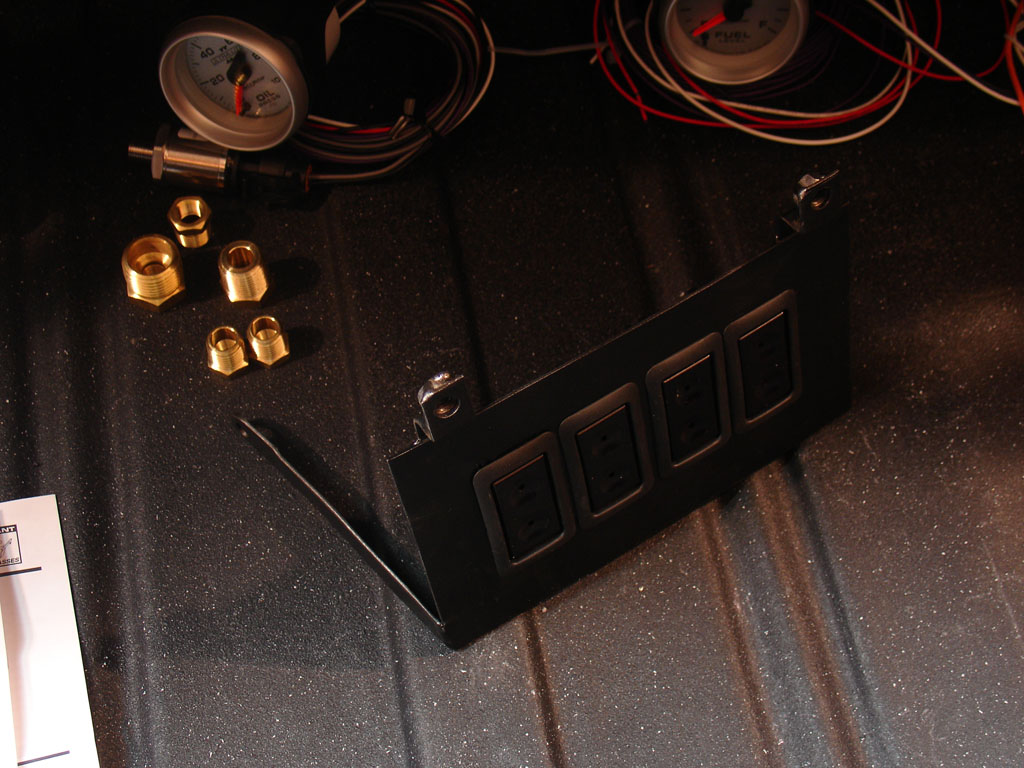

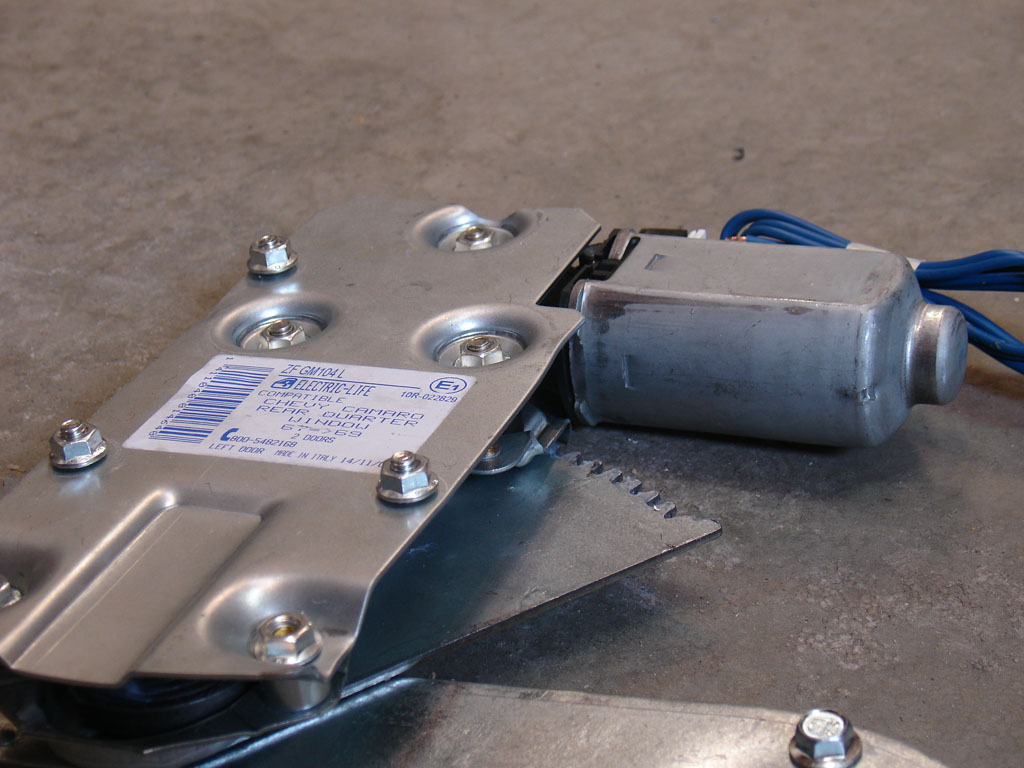

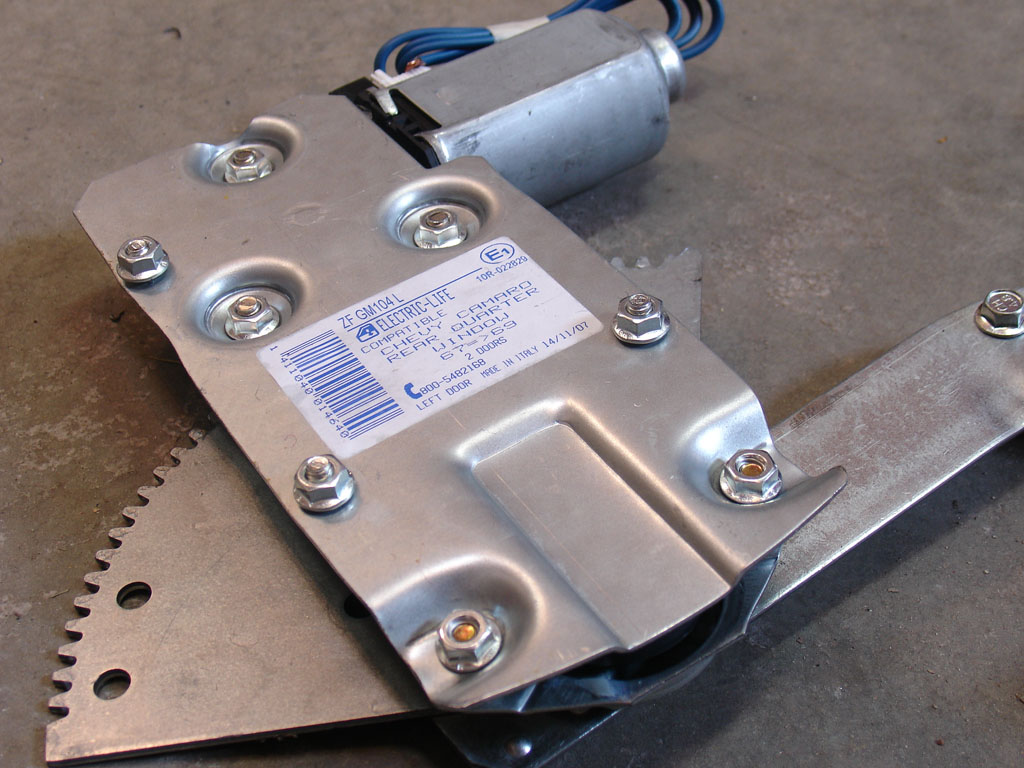

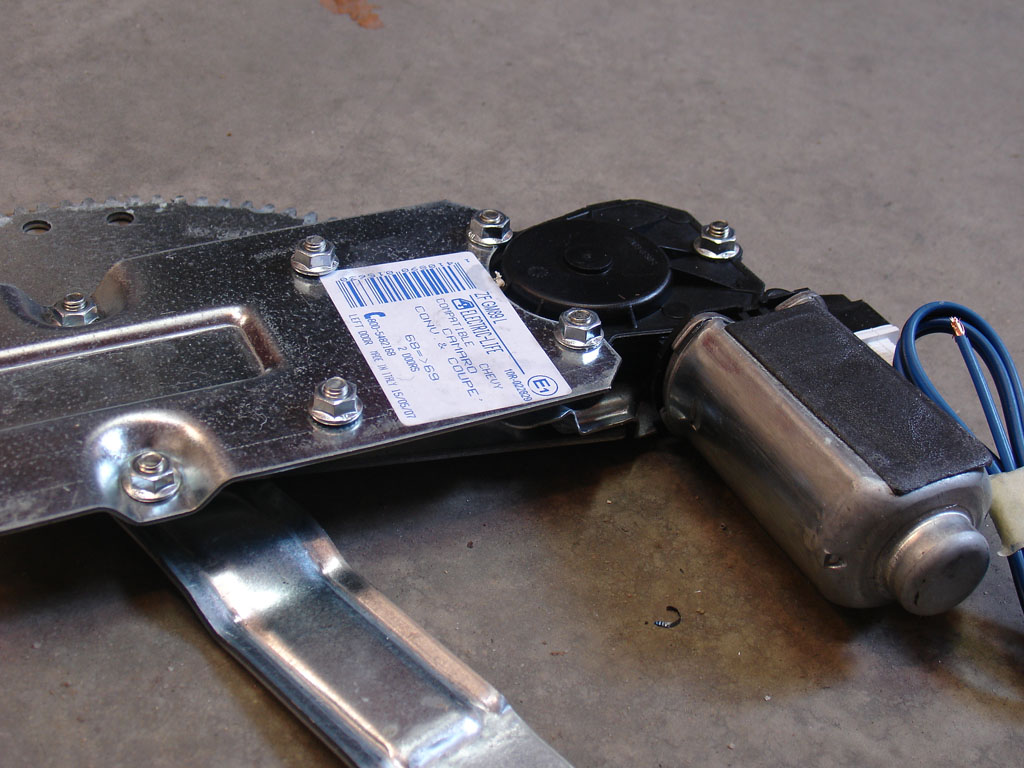

Electric Life power window operators and switch bracket I made for mounting the switches flush under the dash.



Door looms for the power window harnesses.



Harness going in.

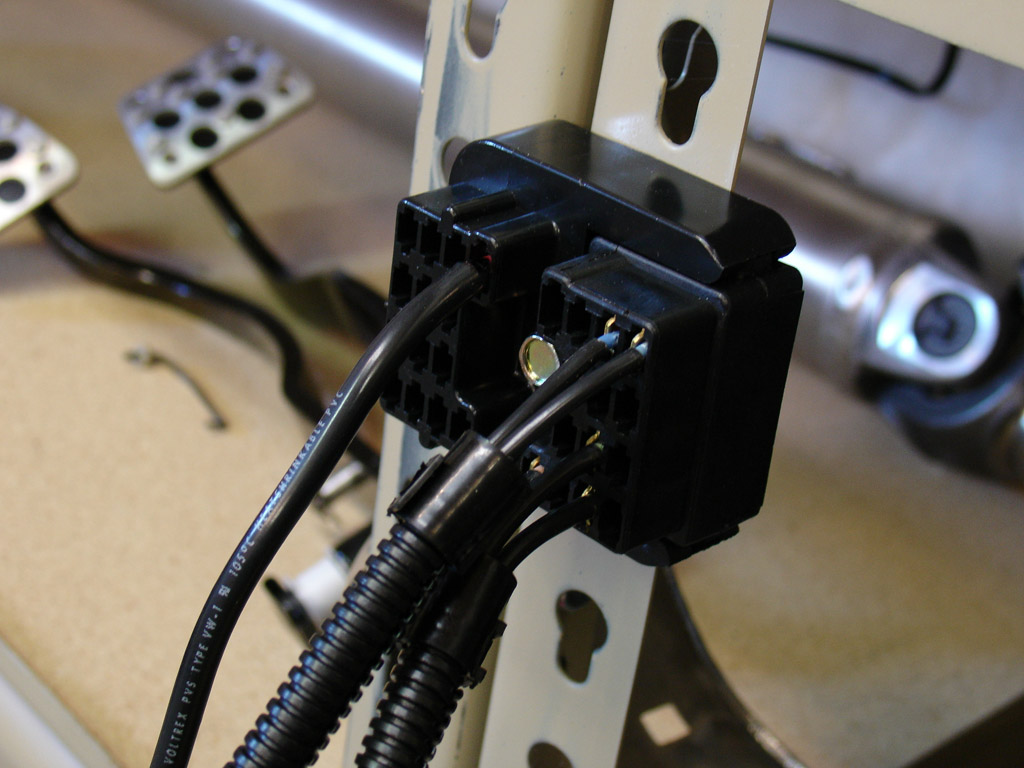

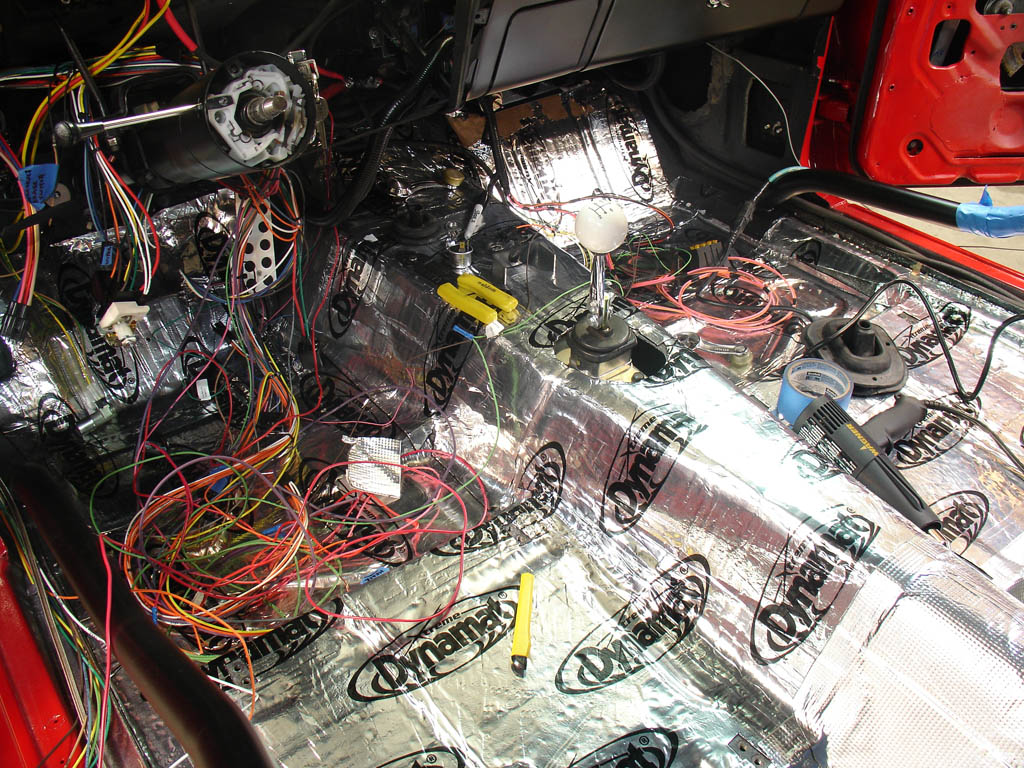

Anything that went through the stock  bulkhead that wasn't needed was removed.
