Default Dining Room Art

These are just so bad ass ... Big thanks to the guys at Forgeline and Roger over at Speedtech

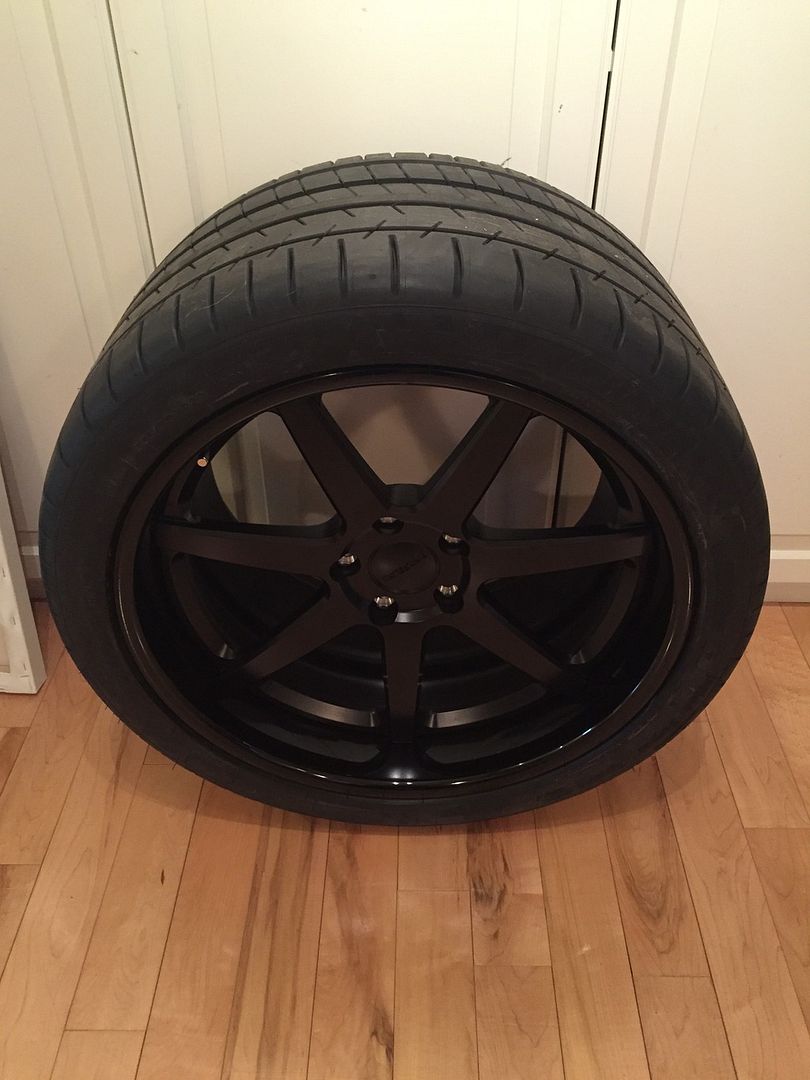

New for 2016 CV3C concave wheels

Pictures just do not do these justice
Cheers'
Steve

__________________
'Build it RIGHT the 2nd time'
69' SS X11 PRO-TOURING - SOLD
73' FJ40 LS - SOLD
1966 FJ40 R2.8 -SOLD
911 Hotrod - SOLD
2002 Gated 360
Next up - "Killer Piggy"
67' Camaro - Take-Over'

Last edited by Sheck44; 03-31-2016 at 05:21 AM.
Reply With Quote
  #2
Old 03-29-2016, 07:02 AM
Yelcamino's Avatar
Yelcamino Yelcamino is offline
Senior Member

Join Date: Apr 2008
Location: Indiana
Posts: 305
Thanks: 9
Thanked 64 Times in 26 Posts
Default

Nice!
__________________
Herb

1966 El Camino LS408/T56Magnum
1966 Chevelle 509/T56Magnum
1963 C10 454/4L80


PHR CHP CHP Youtube
Reply With Quote
  #3
Old 03-30-2016, 07:09 PM
214Chevy's Avatar
214Chevy 214Chevy is offline
Lateral-g Supporting Member

Join Date: Jul 2008
Location: DALLAS, Texas
Posts: 4,688
Thanks: 458
Thanked 689 Times in 421 Posts
Default

Quote:
Originally Posted by Yelcamino View Post
Nice!
Yeah...what he said!! What are they going on?
__________________
'68 C10 swb
'69 Camaro convertible
'72 Chevelle

Reply With Quote
  #4
Old 03-30-2016, 08:41 PM
raustinss raustinss is offline
Senior Member

Join Date: Dec 2013
Location: Kitchener ,Ontario
Posts: 847
Thanks: 54
Thanked 98 Times in 76 Posts
Default

oh boy steve you did more shoppin', im off work for 3-4 months from shoulder surgery let me know if you happen to be in the area anytime ,love to see version 2.0 of the camaro
Reply With Quote
  #5
Old 03-31-2016, 05:08 AM
Sheck44's Avatar
Sheck44 Sheck44 is offline
Senior Member

Join Date: Mar 2013
Location: Pickering Ont
Posts: 1,048
Thanks: 167
Thanked 979 Times in 365 Posts
Default Wheels

Hey guys ... bright blue 69' Camaro

Ryan, you got it, but won't be completed until June likely

Cheers
Steve
__________________
'Build it RIGHT the 2nd time'
69' SS X11 PRO-TOURING - SOLD
73' FJ40 LS - SOLD
1966 FJ40 R2.8 -SOLD
911 Hotrod - SOLD
2002 Gated 360
Next up - "Killer Piggy"
67' Camaro - Take-Over'
Reply With Quote
  #6
Old 03-31-2016, 05:20 AM
Sheck44's Avatar
Sheck44 Sheck44 is offline
Senior Member

Join Date: Mar 2013
Location: Pickering Ont
Posts: 1,048
Thanks: 167
Thanked 979 Times in 365 Posts
Default wheels

__________________
'Build it RIGHT the 2nd time'
69' SS X11 PRO-TOURING - SOLD
73' FJ40 LS - SOLD
1966 FJ40 R2.8 -SOLD
911 Hotrod - SOLD
2002 Gated 360
Next up - "Killer Piggy"
67' Camaro - Take-Over'
Reply With Quote
  #7
Old 03-31-2016, 07:17 AM
raustinss raustinss is offline
Senior Member

Join Date: Dec 2013
Location: Kitchener ,Ontario
Posts: 847
Thanks: 54
Thanked 98 Times in 76 Posts
Default

Np might have my engine done by then either way you still owe me a ride lol , I don't go back to work until July 14th or something like that .....surgery was only March 24th
Reply With Quote
  #8
Old 04-01-2016, 08:01 PM
214Chevy's Avatar
214Chevy 214Chevy is offline
Lateral-g Supporting Member

Join Date: Jul 2008
Location: DALLAS, Texas
Posts: 4,688
Thanks: 458
Thanked 689 Times in 421 Posts
Default

Oh, now I see in you signature what kind of car you got...silly me. I was too busy looking at your wheels that I didn't notice it.
__________________
'68 C10 swb
'69 Camaro convertible
'72 Chevelle

Reply With Quote
  #9
Old 04-08-2016, 05:03 PM
nacnac nacnac is offline
Senior Member

Join Date: Jan 2011
Posts: 103
Thanks: 0
Thanked 1 Time in 1 Post
Default

They don't look concave from the pics. Are they just part of the concave series or Is it because of the offset you have or the pictures just don't show it?
I'm looking for wheels now and I'm finding to get a concave wheel , the offset can only be in a small range. Or they call them deep concave which is actually concave or shallow concave which is really no concave.
Reply With Quote
  #10
Old 04-08-2016, 11:57 PM
Forgeline Wheels's Avatar
Forgeline Wheels Forgeline Wheels is offline
Lateral-g Supporting Vendor

Join Date: Nov 2015
Location: Dayton, OH
Posts: 530
Thanks: 1
Thanked 554 Times in 200 Posts
Default

Quote:
Originally Posted by nacnac View Post
They don't look concave from the pics. Are they just part of the concave series or Is it because of the offset you have or the pictures just don't show it?
I'm looking for wheels now and I'm finding to get a concave wheel , the offset can only be in a small range. Or they call them deep concave which is actually concave or shallow concave which is really no concave.
All of our Concave Series wheels are available in your choice of either deep or shallow concave profiles. Obviously, the shallow profile does not have much concave angle to it.

There are several situations where the shallow option comes in very handy. Most importantly in cases where the hub placement relative to the body requires a really high offset. Obviously, we can't change where the hub or fenders are located, and the concave angle consumes some of the available horizontal space. So if the center of the wheel is fixed at the hub, but the hub is already very close to the fenders, then the concave spoke angle will push the rim register out toward the fenders, potentially going beyond the edge. (We have a few customers who prefer this skateboard look, because they'll do anything to get more track width and traction. But as a rule of thumb, sticking out past the fenders is generally not acceptable.) So the shallow concave allows us to fit the wheel into these high offset applications with limited space. On a pro-touring car, this is seldom an issue in the rear, but it is often an issue in the front.

The other situation that we encounter often is the tradeoff with the outer lip width. Obviously, holding the width of the wheel constant, and assuming that the center of the wheel is dictated by the position of the hub, then we only have so much space to go outboard. And because the concave spoke angle consumes some of this available space, whatever space is consumed by the concave spoke angle must be subtracted from the width of the outer rim. So if you are trying to max out the outer rim lip width, then you might opt for the shallow profile to get more outer. Again, this is seldom an issue in the rear (because most pro-touring cars have lots of rear lip already, in the rear), but this is often an issue in the front (where space tends to be more limited). So we actually build a lot of sets with deep concave in the rear and shallow in the front.
