1st gen Camaro Subframe dimensions or plans

[hughmullersa]

Hey Guys
calling on everyones help
I am Building a 69 Camaro convertible in South Africa and need some help with subframe dimensions

my subframe i had is so so bad that its beyond repair and can't even take dimensions off it
Import a subframe from the USA with the current rate of exchange $1=ZAR12.56
so that out of the question so before it has landed i am going to pay about 4 times more then what it should cost me
So then the next best option is to either have a complete frame scratch built from pick up point on the current body

So here is the question does anyone have a subframe mocked up in Solidworks or Autocad
that i can then either get laser cut and weld up a frame

any help would be greatly appreciate

please can your help a fellow Muscle car builder from another country out

regards
Hugh

[T_Raven]

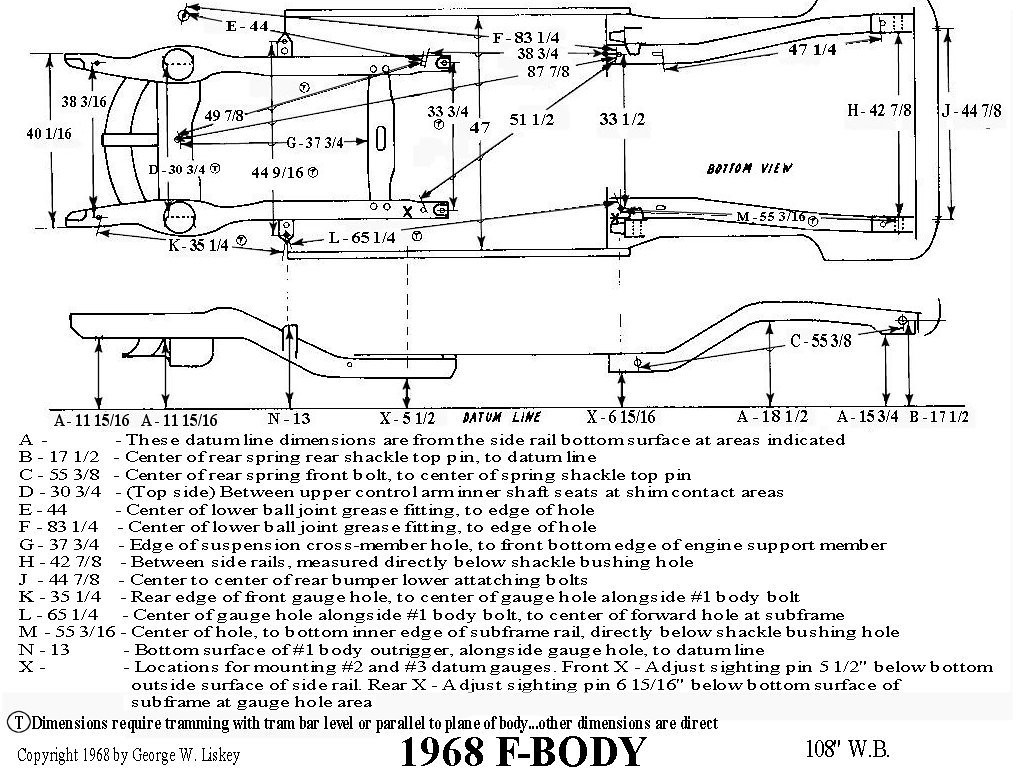

Not great but it's the best I've got

[Sieg]

[hughmullersa]

thanks Sieg and T-Raven
that helps a lot

tell me from this it should be easy enough to fab corvette C6 set up i assume


anyone have some pointers or anything i should be aware of

once again thanks again
