NEW -- IIMuch Airport AC Bulkhead System

[JohnUlaszek]

The II MUCH Airport AC bulkhead was designed to dramatically reduce the effort required to route EZ-Clip lines through the firewall when installing Vintage Air AC systems.

All four lines fit through a 2.5" hole
Because fittings are eliminated there is no need to allow for wrench clearance
With EZ-Clips tight bend radius packaging options are improved.
Hoses can be passed through without removing hose ends
Airport seals against the outside diameter of the EZ-Clip hoses
Includes an adapter for the heater control valve to adapt form EZ-Clip to heater hose
O-Ring interface seals against the firewall
Anodized 6061-T6 Aluminum

[Vega$69]

Does this work with reduced barrier lines?

[JohnUlaszek]

It was designed specifically for use with EZ-Clip. What is the diameter of the lines you're referring to?

[gray776]

Cool new product John!

[CarlC]

Nice to see the final product. Great work John.

[Bsinclair]

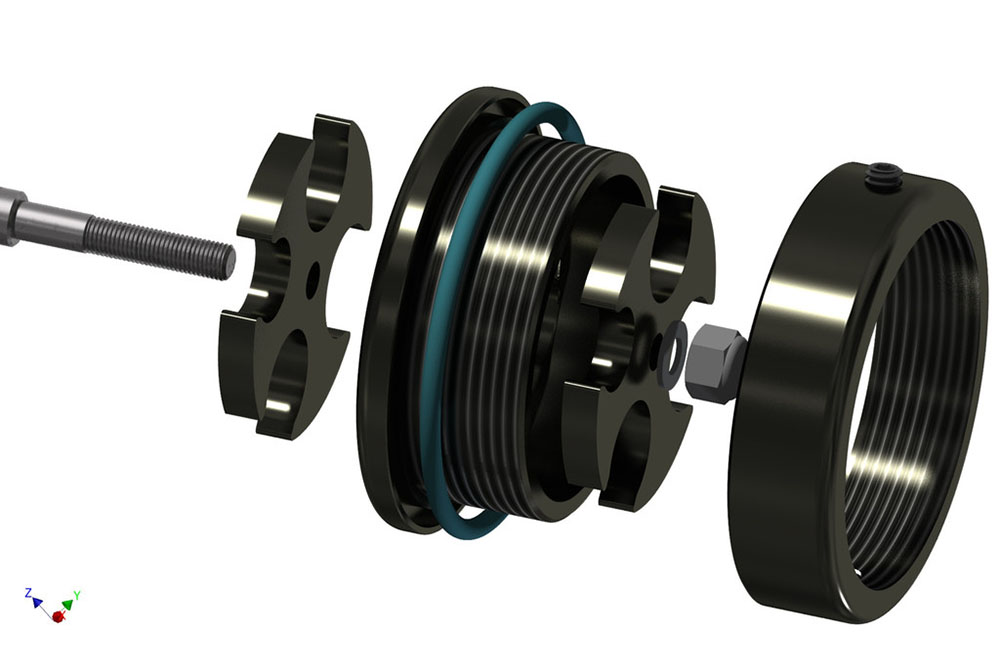

can the bulkhead be ordered in all black anodizing like the cad drawing? i went to order 1 and there were no options..

[Spiffav8]

Originally Posted by Bsinclair

can the bulkhead be ordered in all black anodizing like the cad drawing? i went to order 1 and there were no options..

I would also like to know.

[JohnUlaszek]

Originally Posted by Spiffav8

I would also like to know.

Sorry I missed your questions. Yes, it can be ordered black on black. There is a drop down menu that lets you choose between black and silver.
http://www.iimuch.com/collections/ac...ant=1296491376
