Default TKO 600 neutral safety switch
Was thinking of using the built in neutral safety switch on my tko 600. I have heard I have to use a relay but not sure witch one. Can someone help me with this?
Thanks
Jon
Reply With Quote
  #2
Old 03-25-2015, 11:18 PM
Vince@Meanstreets's Avatar
Vince@Meanstreets Vince@Meanstreets is offline
Senior Member

Join Date: Nov 2004
Location: Bay Area, California
Posts: 5,532
Thanks: 13
Thanked 20 Times in 13 Posts
Default
Quote:
Originally Posted by jblaine86 View Post
Was thinking of using the built in neutral safety switch on my tko 600. I have heard I have to use a relay but not sure witch one. Can someone help me with this?
Thanks
Jon
Just your standard 30amp Bosch relay.
I now use the trans switch to ground the circuit. Alot less wiring down to the trans.

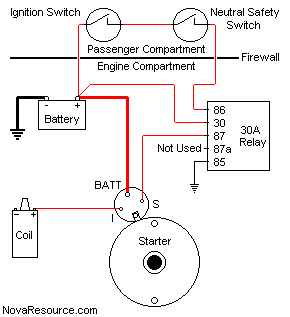

Heres the IGN side schematic.

__________________
MEANSTREETS PERFORMANCE

Dealer for
ACCUAIR rideheight control systems
ENTROPY RADIATORS XXX radiators for your pro-touring vehicle
FORGELINE MOTORSPORTS Highline custom 3 piece wheels
WEGNER AUTOMOTIVE Custom engines and LSX drive systems
SPEEDTECH PERFORMANCE Bay Area stocking dealer

NEVER FORGET -11
Reply With Quote
  #3
Old 03-26-2015, 08:44 AM
badazz81z28 badazz81z28 is offline
Senior Member

Join Date: Jan 2014
Posts: 334
Thanks: 0
Thanked 2 Times in 2 Posts
Default
I used the switch built in the trans too and plan to use the t56s as well. Makes the wiring much simpler
Reply With Quote
  #4
Old 03-26-2015, 09:00 AM
jblaine86 jblaine86 is offline
Member

Join Date: Apr 2009
Location: Maryland
Posts: 84
Thanks: 5
Thanked 0 Times in 0 Posts
Default
Thanks for the responses
