hello all,im new to the sight but have been a long time lerker lol anyways i figured i would post some pics of some street/strip wiring ive done outa my small shop known as Racewires

this is the pic in my avatar,i used this relay board from Leash electronics for the convertable top motor


i mounted the fuseblock along with other goodies in the trunk behind the rear seat


who doesnt want there ign box in the glove compartment lol

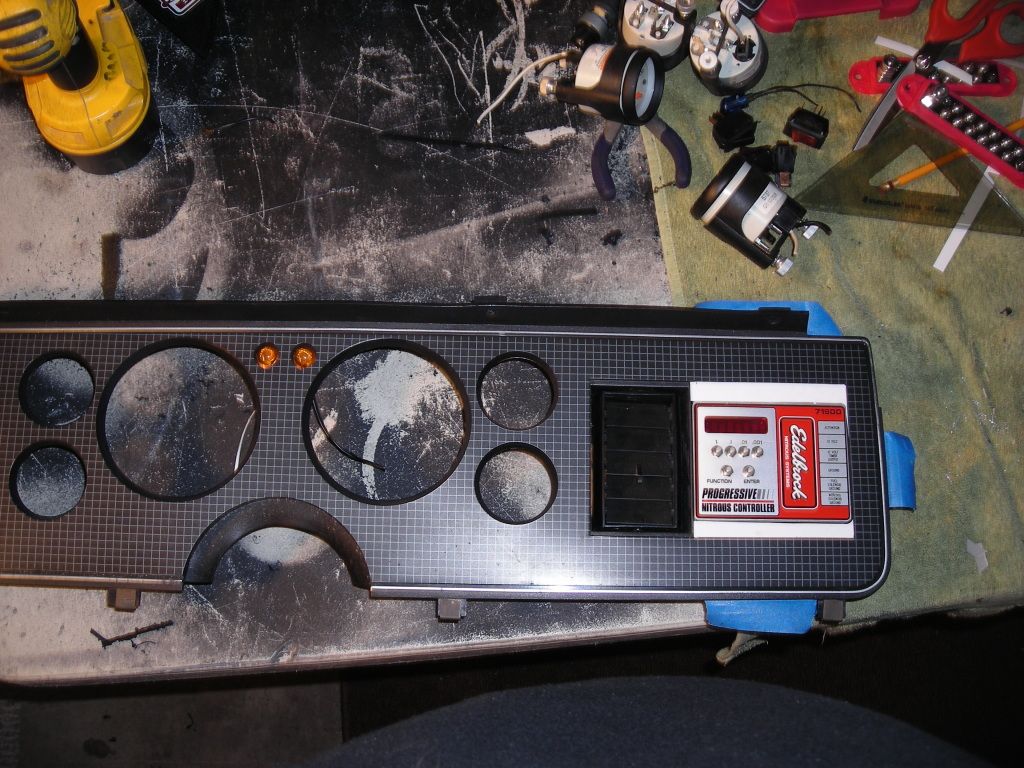

made a nice gauge panel


another project with goodies in the glove compartment


i can post more then,maybe itll help others out with some ideas or itll help me out with your feedback!

[NOPANTS68]

very surgical- I like it. Great job. I feel this is my weakest area so these types of pics really help.

[waynieZ]

Nice work it looks great.

[skeletonpsycho]

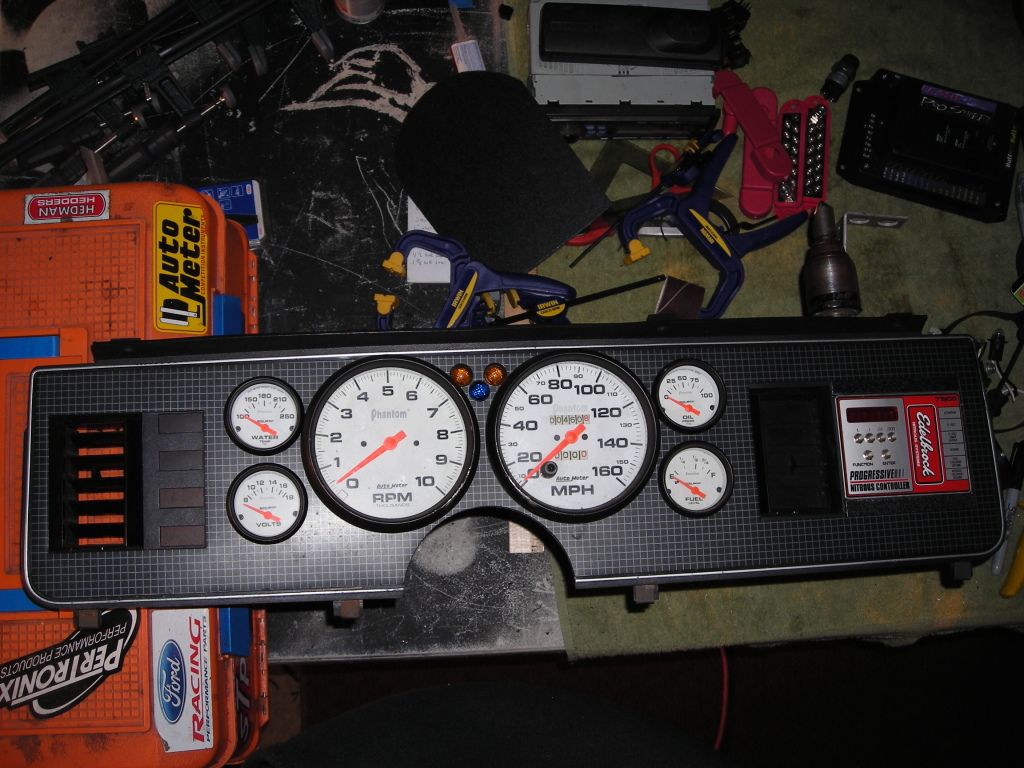

here is a 86 mustang gauge panel

[Vince@Meanstreets]

Which connectors do you prefer and where do you buy?

Nice work.

[skeletonpsycho]

Originally Posted by Vince@MSperfab

Which connectors do you prefer and where do you buy?

Nice work.

so far ive had great success with heat treated non insulated crimp only with duel wall adhesive lined tubing

waytek,vte ect so far so good,most of the cars i do are street/strip,cruise so i buy from different vendors on a job basis but most of the vendors out there are great if you know what you want,thank you for the compliments!
