Default 4th gen rear seat in a first gen F body????

What would be involved in dropping a 1999 Trans Am rear seat into a 1968?

I have a donated rear seat, but on first glance it doesn't even look close. I know the trans/shaft tunnel hump would need to be carpeted as these are pure bucket style vs. the bench.

Ideas...pictures...been there done that?
Reply With Quote
  #2
Old 08-17-2011, 08:18 AM
hifi875's Avatar
hifi875 hifi875 is offline
Senior Member

Join Date: Aug 2005
Location: bowling green ky
Posts: 816
Thanks: 0
Thanked 0 Times in 0 Posts
Default

have to make filler panels for the side. i had my upholstery guy make me a center armrest for between the rear seats and welded a tab for the back of the seat to bolt into so that it would fold down.
Reply With Quote
  #3
Old 08-17-2011, 08:33 AM
69MyWay's Avatar
69MyWay 69MyWay is offline
Supporting Member

Join Date: Feb 2005
Location: Clinton, IL
Posts: 1,256
Thanks: 8
Thanked 13 Times in 6 Posts
Default

Any pictures
Reply With Quote
  #4
Old 08-17-2011, 10:17 AM
hifi875's Avatar
hifi875 hifi875 is offline
Senior Member

Join Date: Aug 2005
Location: bowling green ky
Posts: 816
Thanks: 0
Thanked 0 Times in 0 Posts
Default

i will get some tonite
Reply With Quote
  #5
Old 08-19-2011, 03:19 PM
69MyWay's Avatar
69MyWay 69MyWay is offline
Supporting Member

Join Date: Feb 2005
Location: Clinton, IL
Posts: 1,256
Thanks: 8
Thanked 13 Times in 6 Posts
Default

Okay made some progress. Thanks for the pm with the photo link. That helped a ton. I bolted the top in and fitted the bottoms in place and mounted with a bracket in the front bottom 1999 seat bolt mount. I bent the 68 upper seat mounts over.

I used some cardboard tape and wire to fashion fillers on the sides and middle. Put 3+ layers of cloth on. Inthe morning I will grind and fill these and spray black for now. Will cover in vinyl later.

I will post pics later.

I have about $50 in fiberglass stuff to make this donated rear seat that matches the donated front seats work.
Reply With Quote
  #6
Old 08-21-2011, 03:38 AM
69MyWay's Avatar
69MyWay 69MyWay is offline
Supporting Member

Join Date: Feb 2005
Location: Clinton, IL
Posts: 1,256
Thanks: 8
Thanked 13 Times in 6 Posts
Default

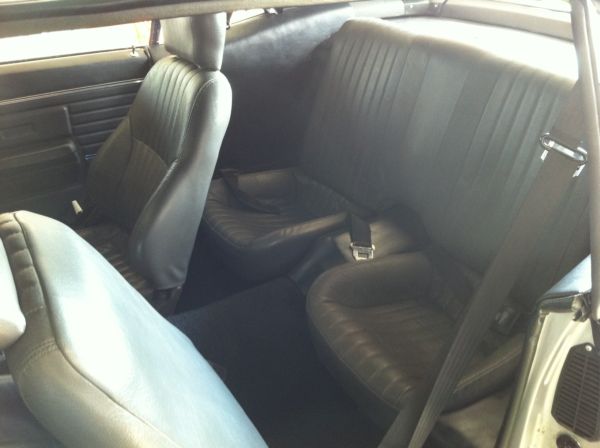

And here it is:









Reply With Quote
