American Autowire Highway 22 Wiring Kit - Complete NIB

[Gandalf]

SOLD!

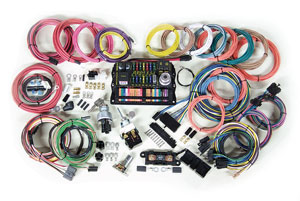

American Autowire Highway 22 Wiring Kit, complete, new in the box from AAW. (Normally $449+ ship from AAW). Sell for $325 plus shipping.

This is their big momma kit that will let you run pretty much anything you want in any musclecar or hotrod.

From the AAW Site: The Highway 22 Complete Wiring Kit includes all the necessary wiring for headlights including: a three position headlight switch; a 40 amp electric fan or fuel pump relay; heavy duty power and accessory expansion; micro-relays for horns and turn signals; an accessory harness for radio, electric wipers, heater, air conditioning, fuel pump, and interior lighting. This kit also contains a floor mounted dimmer switch; an ignition switch that has been designed for either dash or column mounting, and includes all the connectors and terminals. The Highway 22 was designed to promote complete mounting flexibility and creativity in specialty electrical systems.

Additional Features:
Modular wiring system
22 power circuits supported through 15 fuses and 1 circuit breaker
Battery and accessory power tap studs provided for system expansion
Panel protected with a 175 amp Mega-Fuse junction block with a 8 gauge panel feed wire
Nylon mechanically secured panel containing secondary push-back locks, has a 7-1/2" x 4-1/2" footprint, 3-3/8" in height, and mounted on a (G10) non-conductive epoxy base
All power buss bars are constructed of 6 gauge copper
All wires are constructed from heat resistant (-60F - +275F)
GXL heavy-wall wire with laser printed circuit identification every 2 inches
GM color coded wires for ease of installation
All power circuits wires are 12 gauge constructed
New front loaded vibration proof self- locking (Hooke's Law) screw down terminal connection
Dedicated battery and ignition circuits for electronic fuel injection (EFI) Kit contains 3 relays (Horn, Turn Signal & 40 amp Electric Fan or Fuel Pump)
Turn signal and hazard flasher circuits provided
8 gauge alternator feed wire provided
The kit is set-up for a GM "SI" internally regulated alternator or GM 1-wire
Alternator diode is also provided
Kit includes 3 (In-dash Ignition, Headlight & Alum. Knob and Floor Dimmer) switches
GM in-column ignition switch connectors provided, along with 3-7/8" GM steering column connectors with male and female terminals
Plugs directly most 69-74 GM column and most aftermarket steering columns or use the terminals and connector provided to mate to any column
Spare circuits available (for power windows, locks, cruise, etc.).
Engine compartment (oil pressure, water temp, tach, starter, neutral safety, brake switch, ignition switch, distributor (GM HEI or Points), coil, main power and alternator)
Chassis wiring (fuel pump, electric fan, headlights, running lights, brake lights, 3rd brake lt., directional, license plate, radio, heat & AC, and wipers)
Full color schematic of overall vehicle wiring along with individual harness subkit instructions for trouble-free installation.

Can be seen here: http://www.americanautowire.com/highway22.html

$325 plus the ride

Location - San Diego, CA.

[Chicken Louie]

Interested if still available email sent.

[Gandalf]

Sold to Chicken!
