**Swain** · #1 11-18-2009, 04:03 PM

I am installing my G Link on my 68 Camaro. Does anyone have photos of the install with a 9"?

ironworks · #2 11-18-2009, 04:13 PM

Check out the Chassisworks Camaro build, I have alot more pics, but they are for the magazine article in Musclecar Power. Let me know what you need.

Aschle · #3 11-18-2009, 05:46 PM

Quote:

Originally Posted by ironworks

Check out the Chassisworks Camaro build, I have alot more pics, but they are for the magazine article in Musclecar Power. Let me know what you need.

Still down for making me a set of frame rails? I am the guy you spoke with at Pinks all out with the 69' Camaro... I have my car torn apart in the garage right now and the frame rails are going to be soon on the list...

Jason

ironworks · #4 11-18-2009, 06:23 PM

Yes Sir

markd · #5 11-18-2009, 07:24 PM

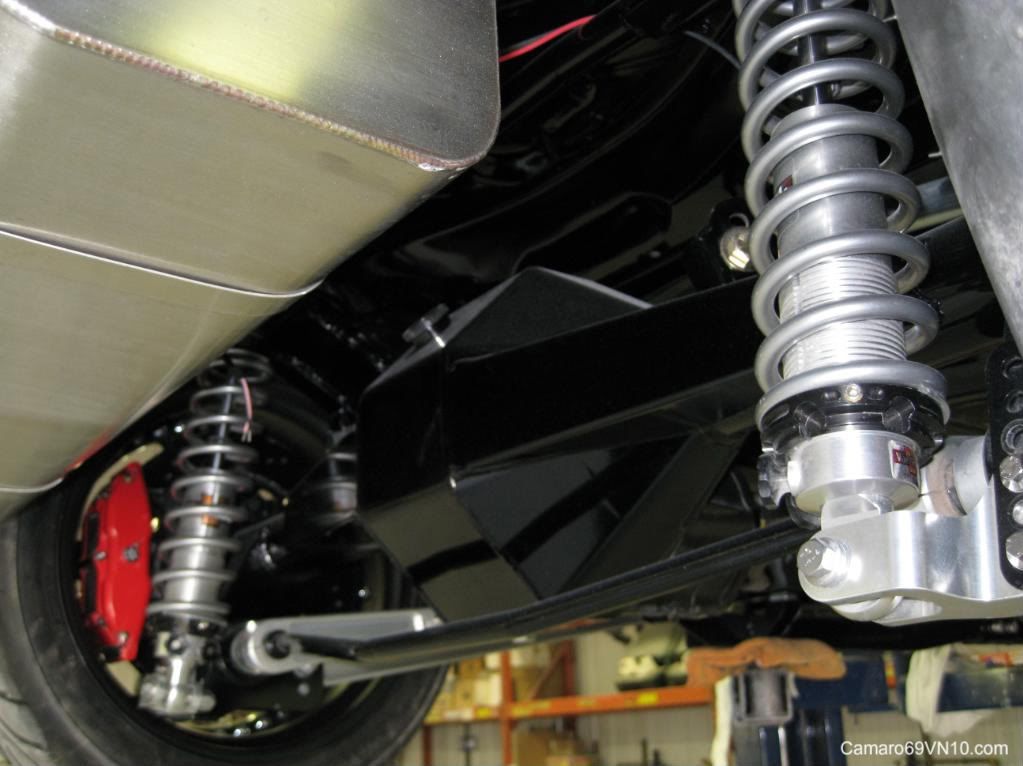

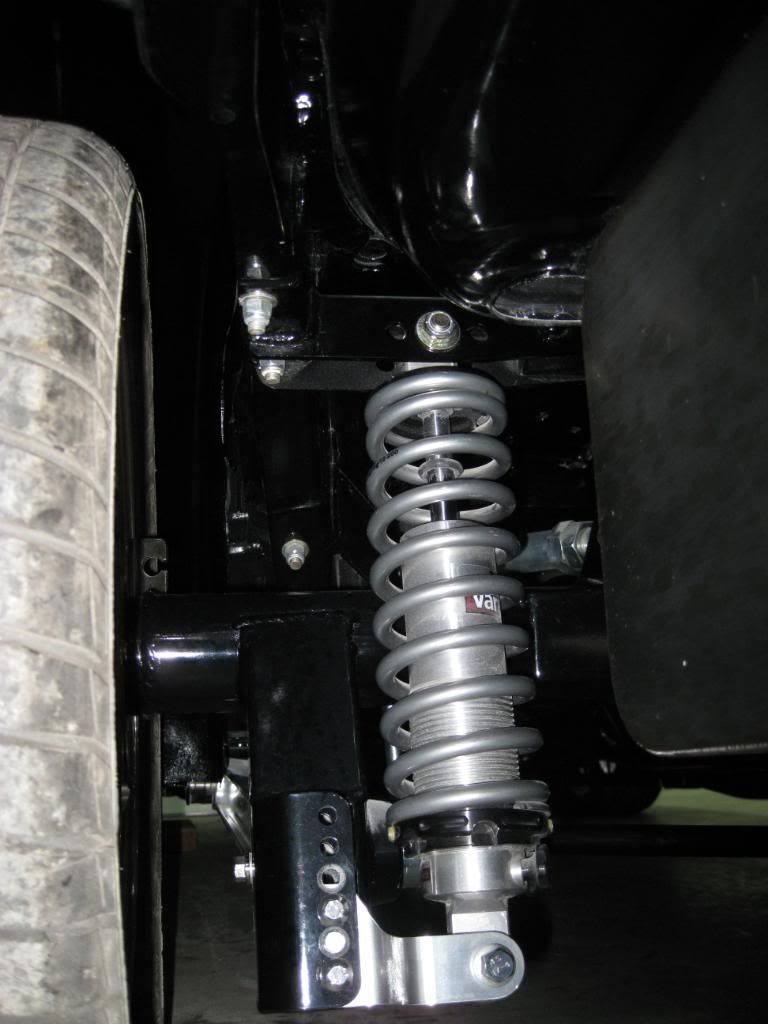

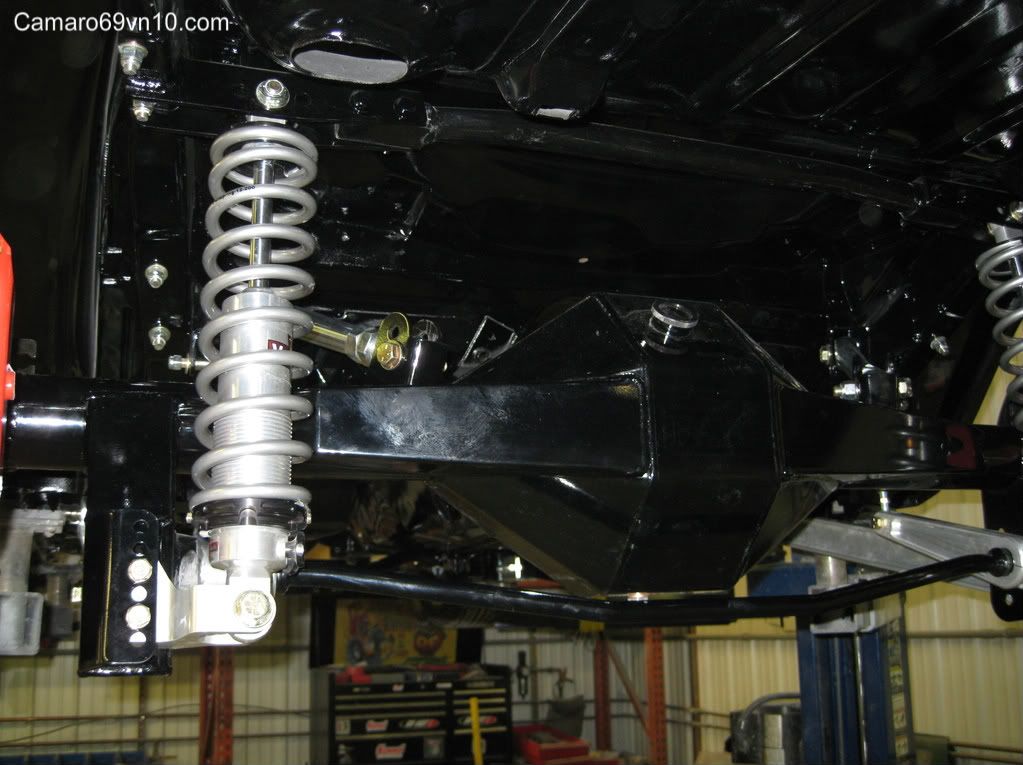

How about these pics????

Good luck with the install!

Mark

ItDoRun · #6 11-18-2009, 07:32 PM

Mark,
Did you ever do any adjusting on the ride height?

**Swain** · #7 11-19-2009, 08:18 AM

Does this sound right, My measurements mounting surface to mounting surface is 54.75"

Housing width 49.15
Driver Housing 19.189
Pass Housing 19.941
Driver Tube 15.162
Pass Tube 15.914

Pin offset 0.5

I had my currie built to these specs.

ProdigyCustoms · #8 11-19-2009, 11:47 AM

Those measurements will work with a 5.4 BS on a 12" wheels Jay. but your overall width should only be 5" wider then your housing width (49.15 + 5 is 54.15" axle flange to axle flange)

Here is one we just went back home to California! This one has a 6" BS and a wider housing.
