Default 62 Impala

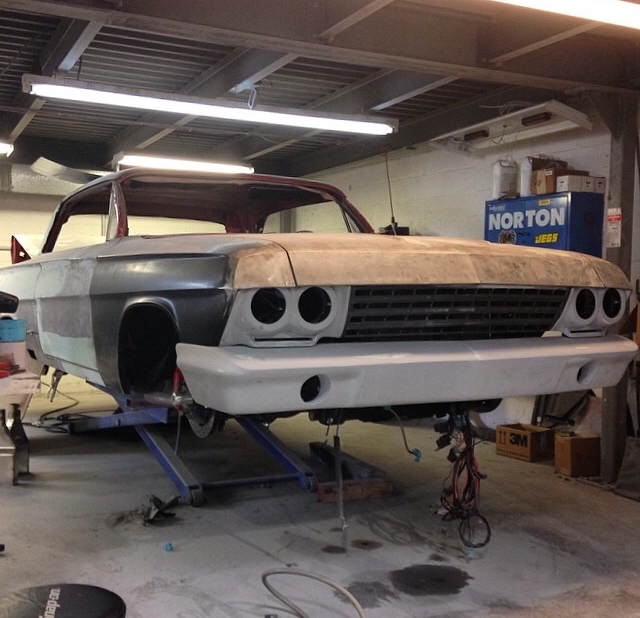

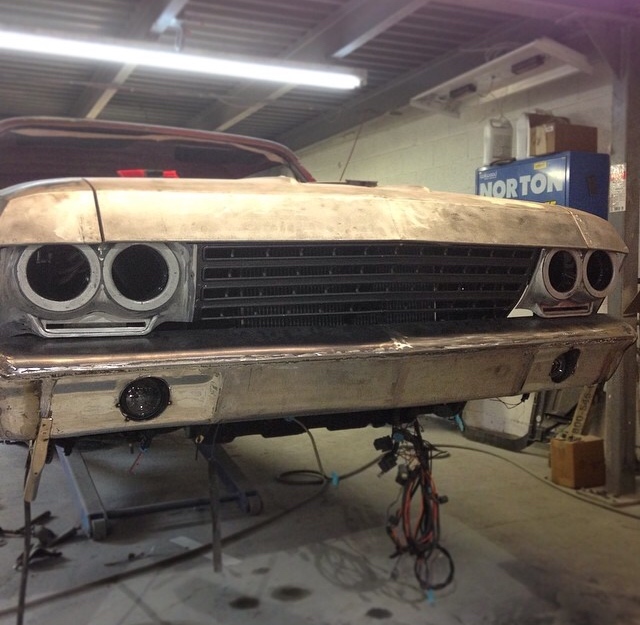

Hello everyone! Im currently working at Ross' Rods out of Fairfax Va and wanted to share with y'all some of the builds we have going on. A quick run down of the car is it has a warmed over 350 (until we go LS3 or bigger) Ridetech suspension with Accuair, JW speaker headlights, Billet Specialties wheels and a ton of body mods.
This was a quick rendering done by my buddy and coworker Eric Steele. We're currently working with some one on an actual rendering and will post it as soon as we get it
Name:  IMG_2498.jpg
Views: 110
Size:  211.1 KB
Heres some of Erics work
Name:  IMG_2497.jpg
Views: 113
Size:  152.1 KB
Name:  IMG_2496.jpg
Views: 111
Size:  144.3 KB
Name:  IMG_2499.jpg
Views: 111
Size:  138.9 KB

Last edited by Chafin; 11-16-2014 at 07:40 PM.
Reply With Quote
  #2
Old 11-16-2014, 07:57 PM
Chafin Chafin is offline
Junior Member

Join Date: Oct 2010
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Currently I'm replacing the door skins and quarters due to the work that was done previously.
Shaved the door handles before they're installed
Name:  resize.jpg
Views: 211
Size:  45.2 KB
Re arched the front of the quarters to clear the wheels but brought the factory body line further down to look factory. Here's a side by side comparison of before and after
Name:  IMG_2440.JPG
Views: 105
Size:  273.5 KB

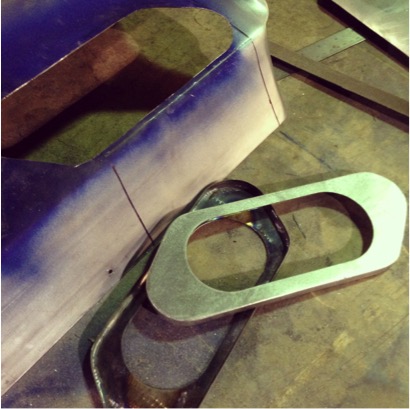

Next up was getting the exhaust bezel housing made up and welded in
Name:  redo.jpg
Views: 211
Size:  51.1 KB
Name:  IMG_2459.JPG
Views: 105
Size:  373.8 KB
The bezel has changed and ill get a pic of it later in the week once i cut it on my plasma table and countersink all the mounting holes
