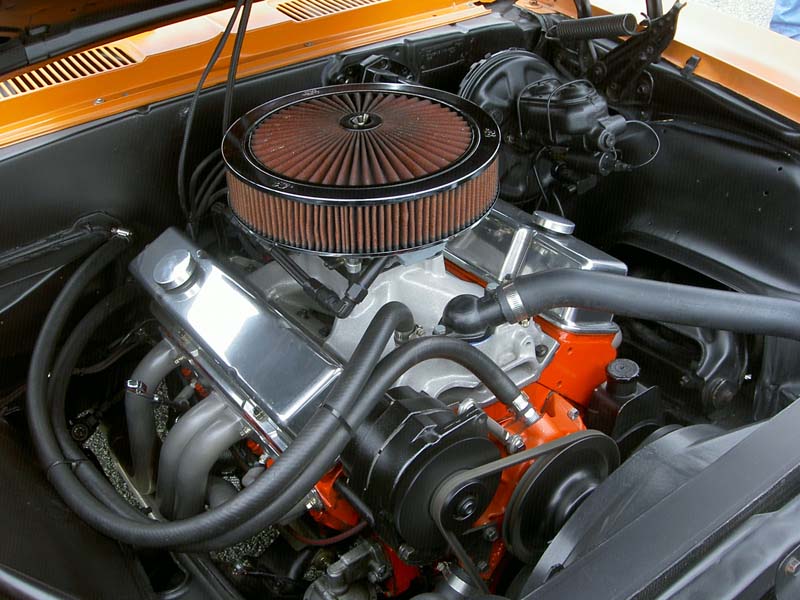

Engine:
2002 GM block
Forged crank
powderd rods
hyperuetectic Pistons
10.3:1 compression
.035 off the heads
.030 off the block
Clevite Bearings
Arp bolts
dart pro1 heads ported
2.05/1.60 valves
215 intake runners
matched to v jr intake
.560 .567 lift 242/244 dur @ .050 solid roller comp cam
chrome moly hardened pushrods
crane gold race 1.5 rockers
cloyes true roller timing set
edelbrock h20 pump v jr
moroso 7qt oil pan w/ studs
melling M55HV (high volume) pump
*red line oil*
demon 750 dp
-8 prolite & 1/2" alum hardline to holley blue pump
custom 1" pickup in stock tank
power: 501hp at 6600rpm
434ft/lbs at 4900
Engine dynoed at Rebello Racing of Antioch Ca
Read More
http://www.milesspeed.com/camaro/engine.htm
http://www.milesspeed.com/camaro/fuel.htm

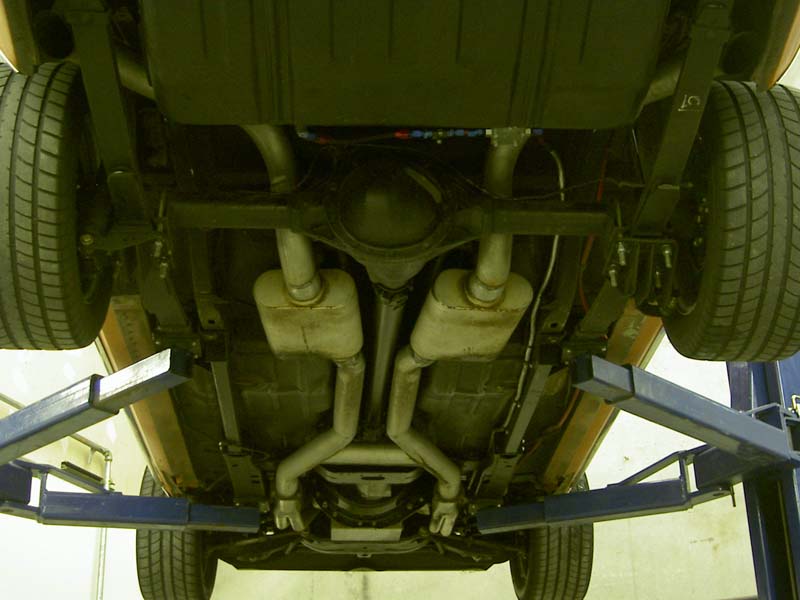

Exhaust:
Headman 1 � - 3� Headers for angle plugs
3� tubing with H pipe
2 Chamber Flowmasters
Read More
http://www.milesspeed.com/camaro/engine.htm

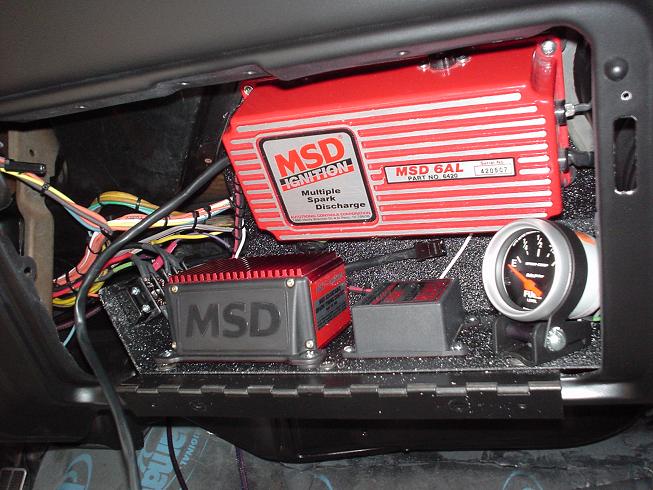

Ignition:
msd 6al
pro-billet dist
timing control
shift light switch
tach adapter to factory 68 tach
crane 8.8 wires
champian plugs
Read More
http://www.milesspeed.com/camaro/engine.htm
Gearage:
mcleod steel flywheel
" " clutch

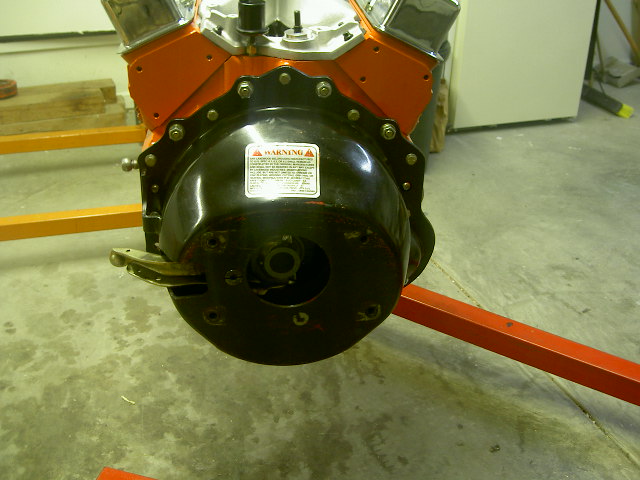

Lakewood scattersheild
hurst shifter
M20 4 speed
energy mounts
spicer ujoints
3" driveshaft
8.2 10bolt
yukon axles
eaton posi
motive 3.73 gears
moroso 1/2X20 studs
Read More
milesspeed.com/camaro/drivetrain.htm
Suspension:
Front:
hotchkis 2" drop coils
hotchkis 1 1/8" front sway bar
energy bushings thoughout
qa1 12-way adjustable shocks
quick ratio steering box (2turns lock to lock)
subframe connectors
Rear:
hotchkis 1 1/2" drop multileaf springs
qa1 12-way shocks
built by owner 1" sway bar
energy bushings
Read More
http://www.milesspeed.com/camaro/suspension.htm

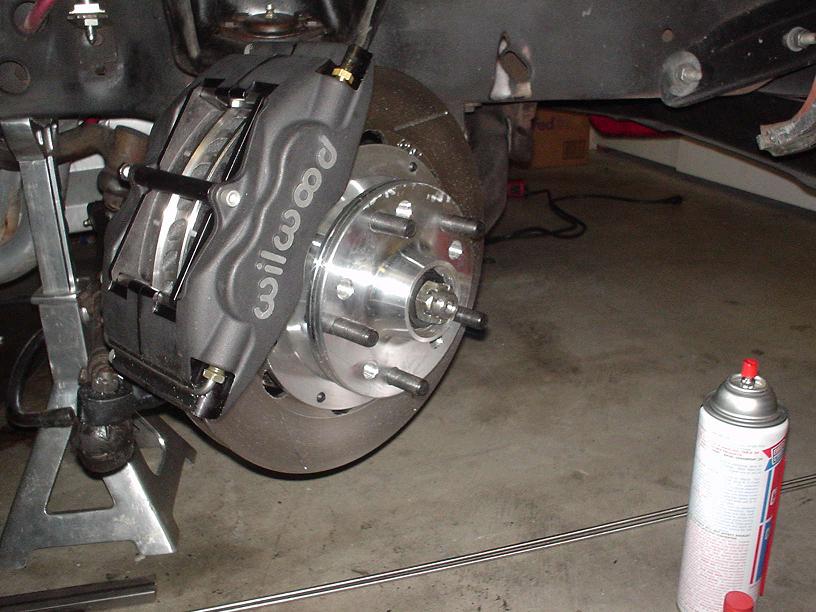

Brakes:

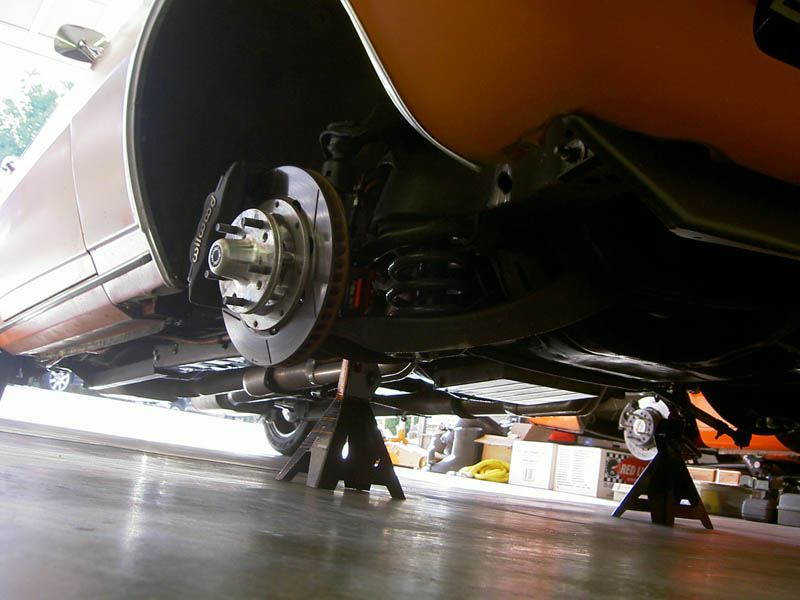

Front
Aluminum hubs/adapters
11.750 X 1.250 wilwood vented and slotted rotors
4 piston dynalite wilwood calipers
Built by owner caliper brackets
Steel braided lines
Rear
12.00 X .800 vented/slotted rotors
4 piston dynolite calipers
internal drum parking brake mech.
Corvette master cyl behind vac booster
line lock
prop valve
Read More
http://www.milesspeed.com/camaro/brakes.htm
Wheels/tires:
Street: corvette 15X7, 15X8 ralley wheels
dunlop 8000 245-50/15 all around
Race: American Racing's cobra wheels 17X8
with Falken Azenis 245/45-17s
Read More
http://www.milesspeed.com/camaro/wheelstires.htm
Interior:
69 seats
factory carpet/door panels
68 bbc factory tach
grant wheel
hurst shifter lever/knob
jvc kameloen deck
kenwood/pioneer speakers
profile amp
infinity 10" subs

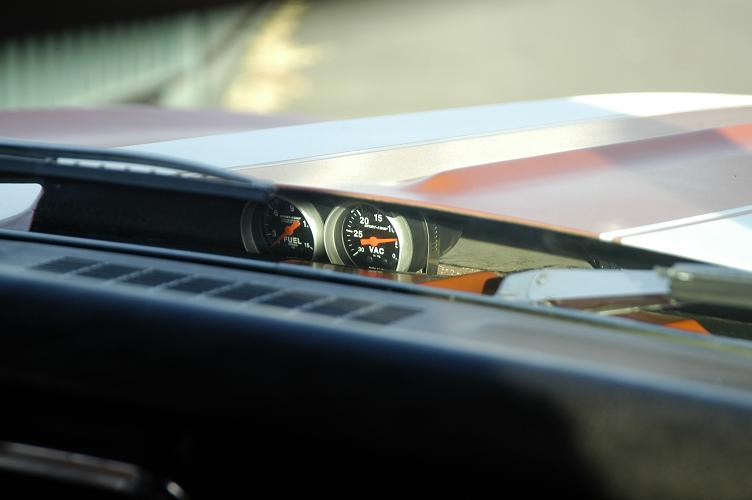

autometer volt/h20temp/oil pressure/vac/fuel pressure/fuel level gauges

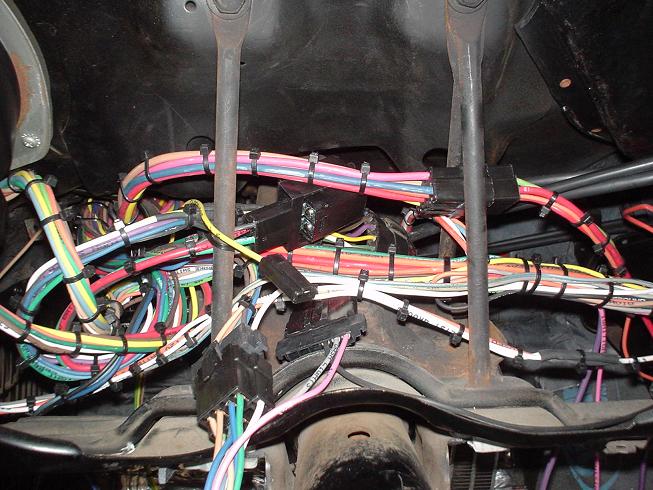

American Autowire Kit, may look like a mess but its quite tidy.
Read More
http://www.milesspeed.com/camaro/interior.htm

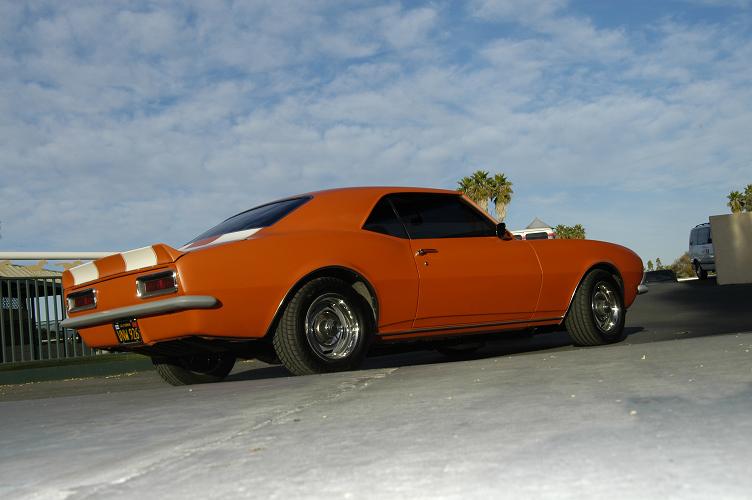

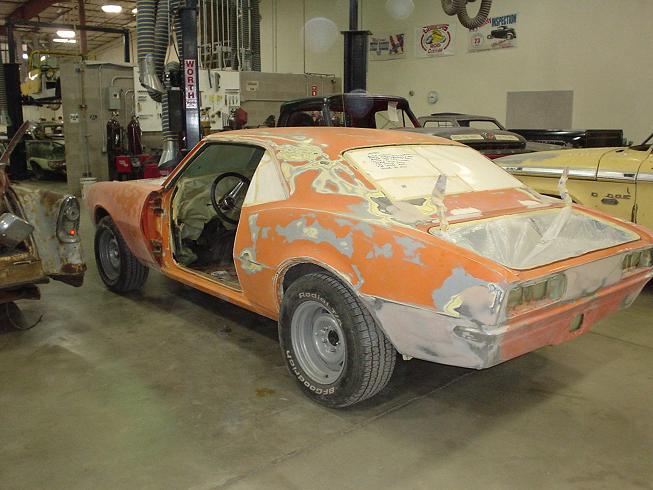

Exterior:
shaved: front plate, antenna, all body seams, marker lights, gas cap, truck
lock, bumper bolts
factory trim and mirrors
black plates
tinted windows
z/28 stripes

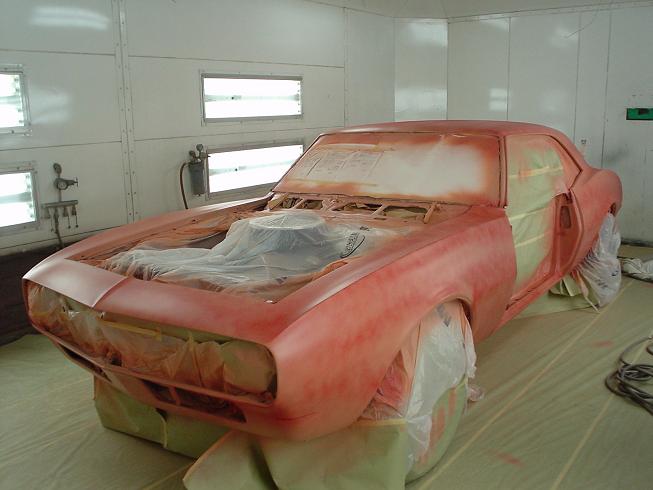

ppg K93 primer tinted with DMD 616, painted by owner

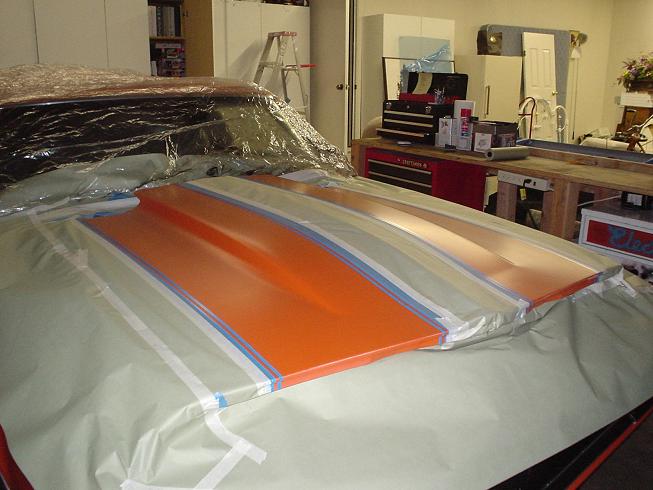

stripes: krylon flat white masked and painted by owner
bumpers: steel with SEM primer
2 1/2" GM steel cowl hood
Read More
http://www.milesspeed.com/camaro/body.htm
