Jim Johnson's 68
Camaro |
 |
 |
This 68 Camaro is designed and custom built by Jim
Johnson of Jim�s Body & Paint in Geneva ,Iowa.
It belongs to Donny Warneke. Donny got the car in 1985 and drove it throughout
High School.
He and my boy ran together. Travis had a 71 Chevelle at the time. They were two
of the local gearheads, who, together built,raced, swapped, and grenaded more
than a few engines, and scattered many other parts across the countryside. I
helped put the Camaro back together after a couple of outta control ditch rides.
Along the way the 68 got pushed, motorless, in the barn for a long rest. In 2003
it got drug into my shop again, this time for a nice restoration. This thing was

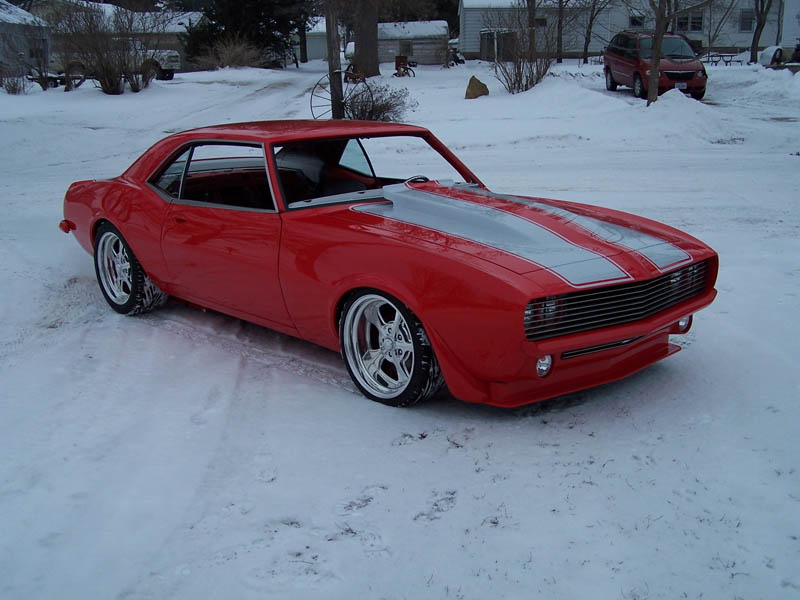

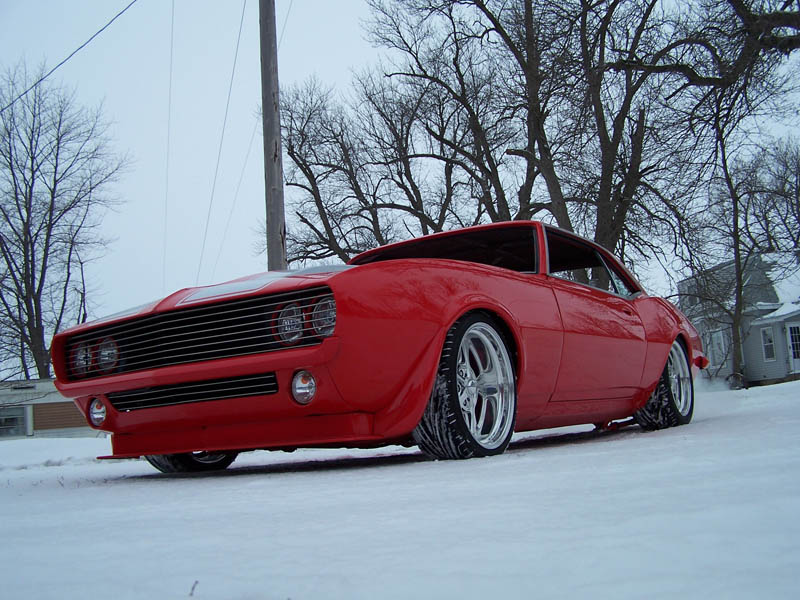

beat to death and needed it all. Why restore at this stage? Let�s build. The

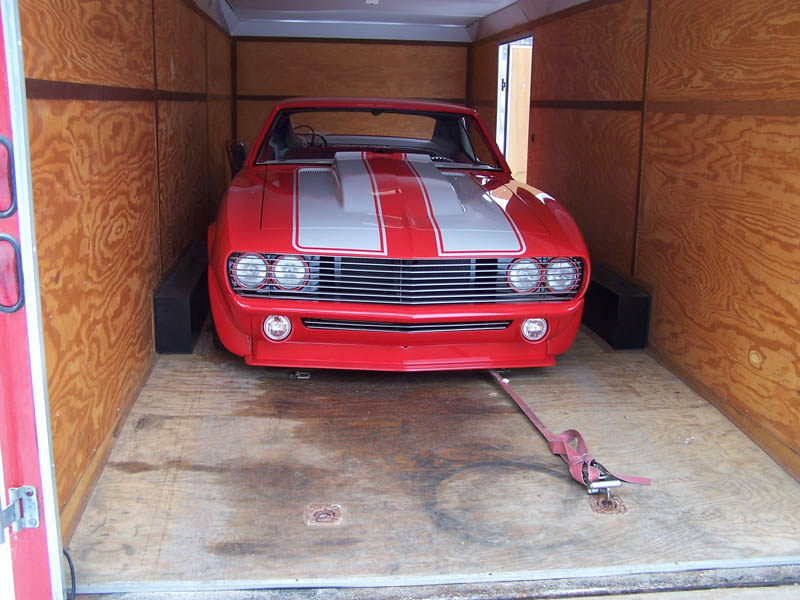

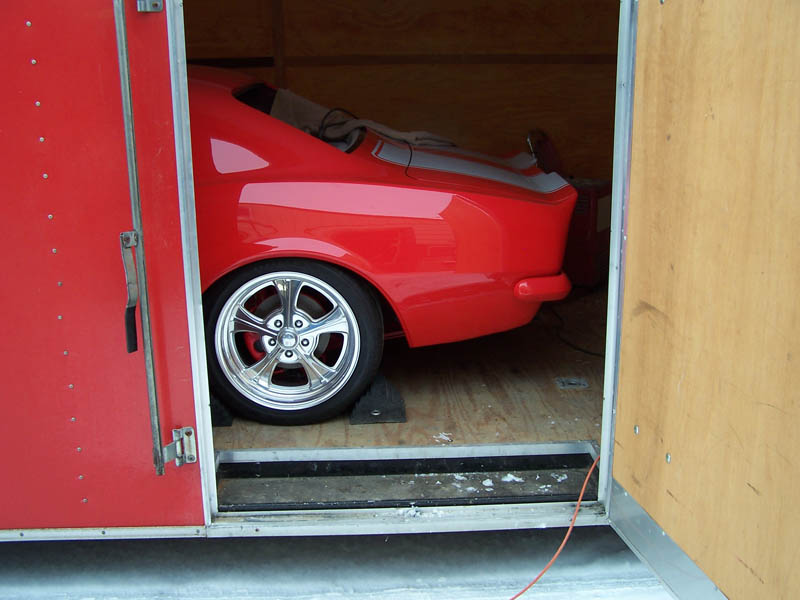

outdoor pictures are from Dec. 06 ,Then it was put in the trailer to go for

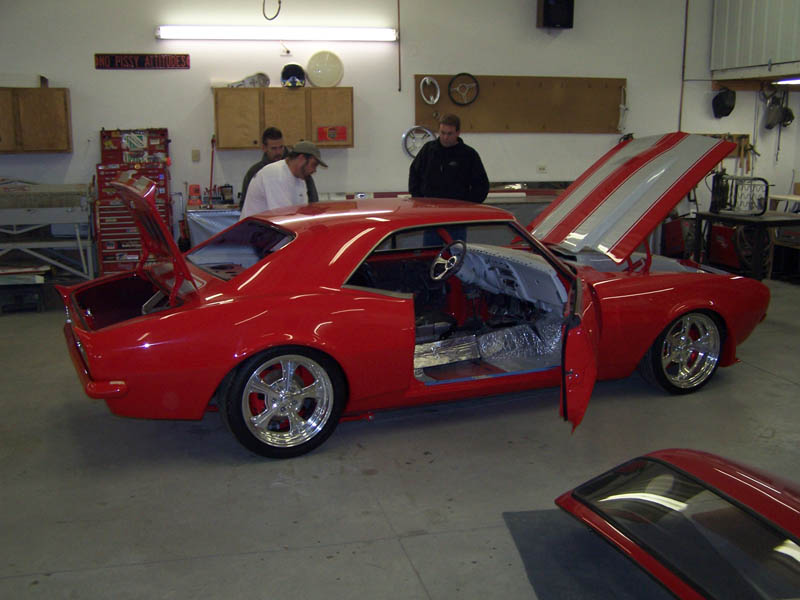

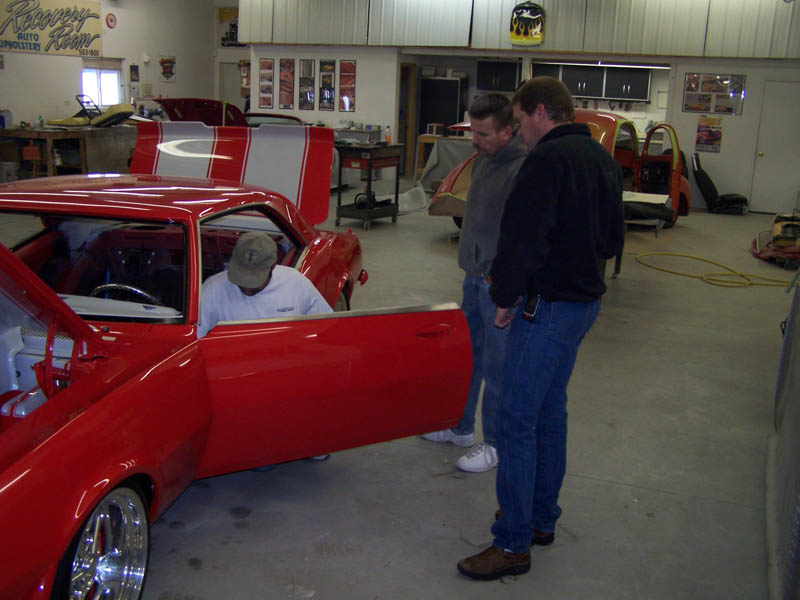

interior. It went Dec. 27, 07 to Recovery Room Hot Rod Interiors for a one off
Custom treatment by Tracy Weaver and Crew. I will update soon.
Engine:
440 GM Big Block- Built by Donny and Travis , Back in The Day
Heads are 1967 GM Alum. Sm. Chmbr. Rect.Prt. 2.19 int. 1.88 exh. With 10.5 comp.
Solid Roller Cam .620 lift
Single plane intake & 830 cfm. Carb.
Ceramic short style Headers for ground clearance
Custom Stainless with Torquetube exhaust
March Long Pump serpentine belt and pully system
Large crossflow Alum. Radiator &Dual Fans
Drivetrain:
6 Spd. Trans. Hyd. Clutch 12 Blt. Rear/4.10 Posi
4Whl. Disc. Brakes GM Standard ,all Stainless lines
Quick ratio GM Pwr/Steering 2 in. drop spindles ,Coilovers,Tubular A arms, 1in.
swaybar
Relocated and Dropped rear Leaf, Heavy shocks and Z�D shackles
Billet Specialties Whls. 18X8 frt 18x10 Rr. With GoodYears

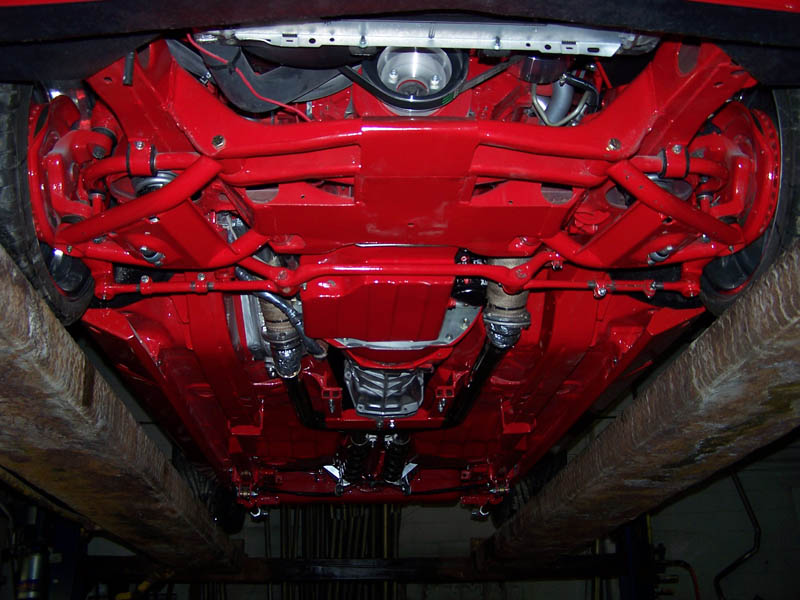

Mods. To underside include- Tubs by Jimmy ,Weld in frame connecters, relocate
shocks & shackles, raise tunnel, extend rockers, Shave frame rails&brace, Shave
frt. X/Mmber, Steering linkage, Oil Pan, Etc.

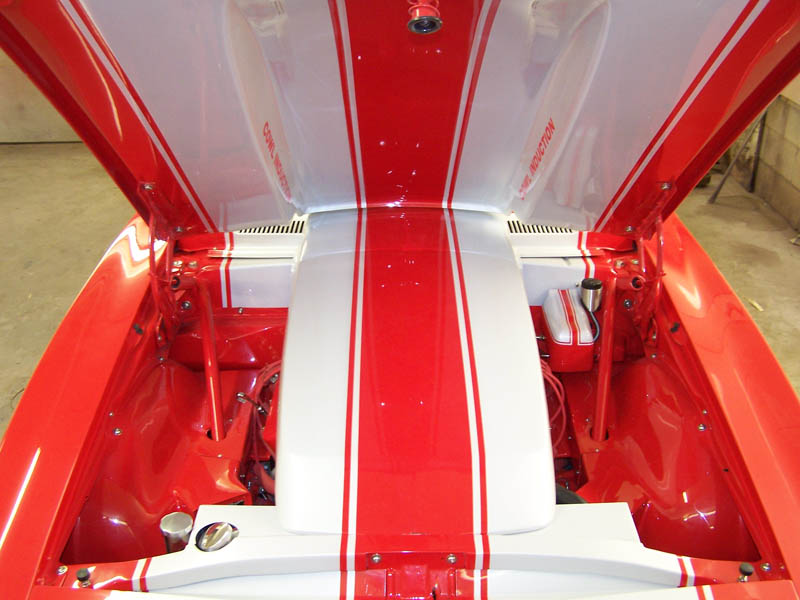

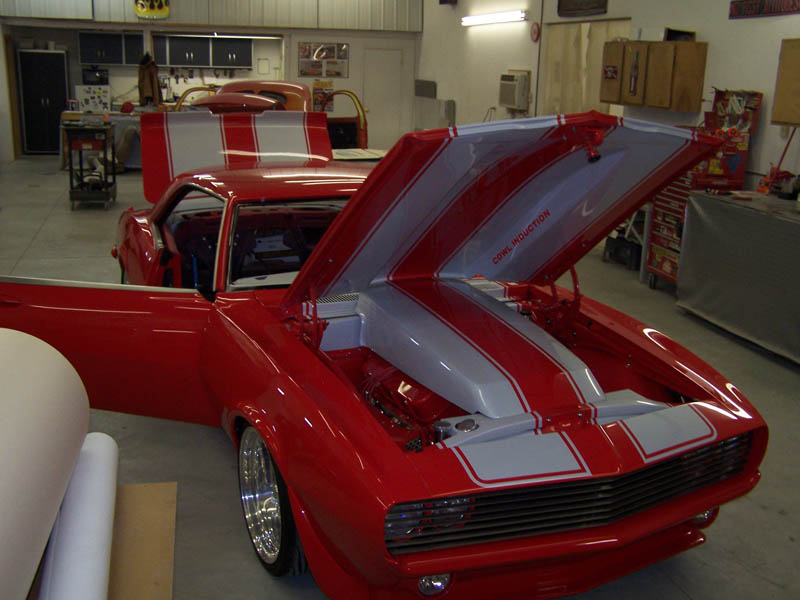

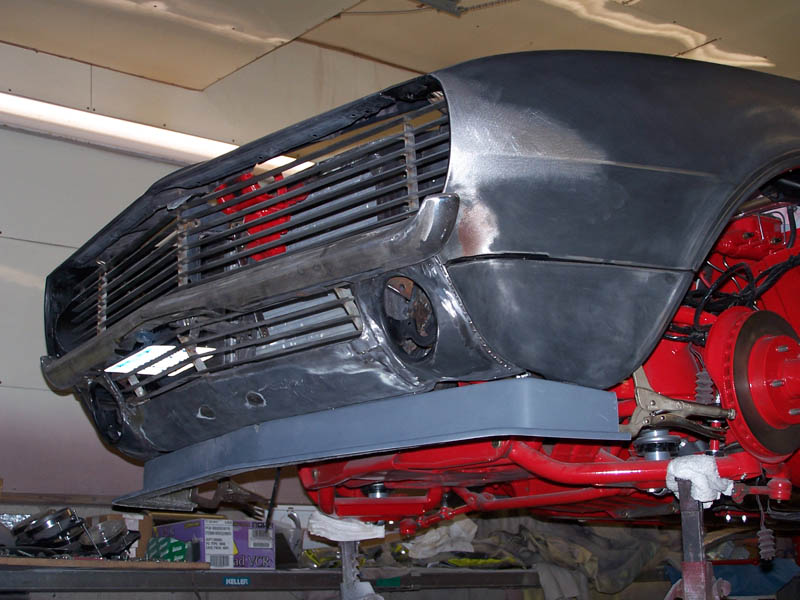

All Body Mods are By Jimmy:
You can see by the pics., This Camaro is Bone Stock , from the Roof-Up.
 |
|
|
 |
|
|
|
|
|
