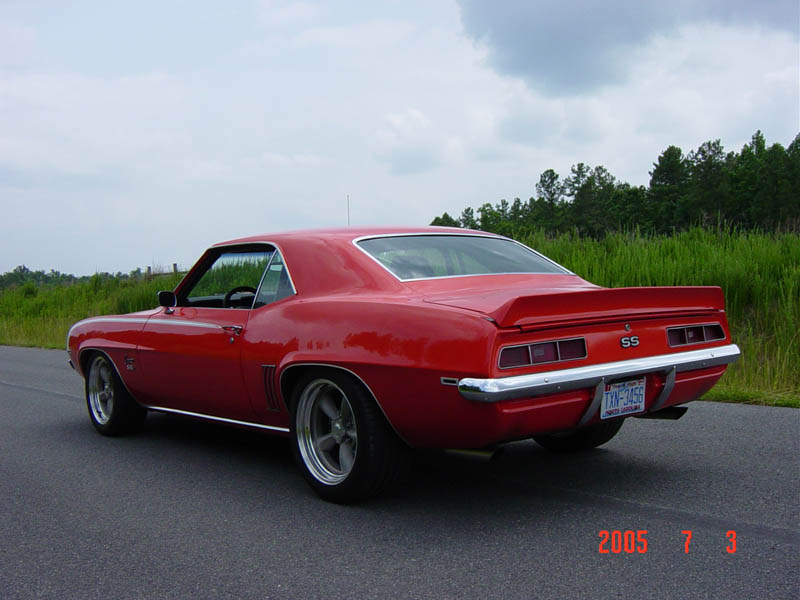

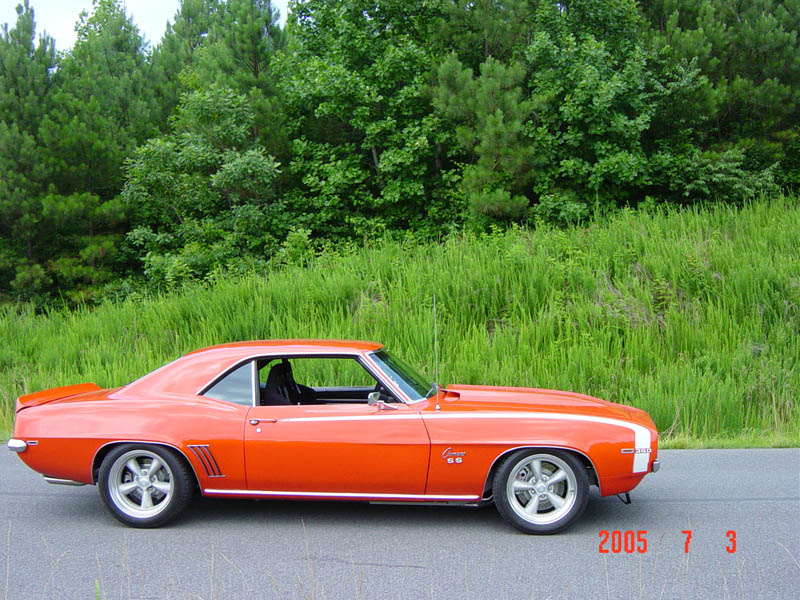

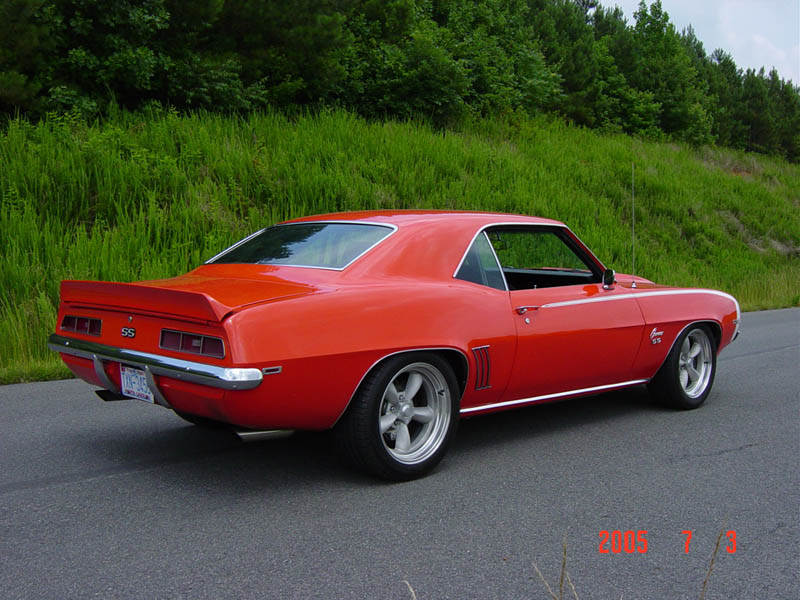

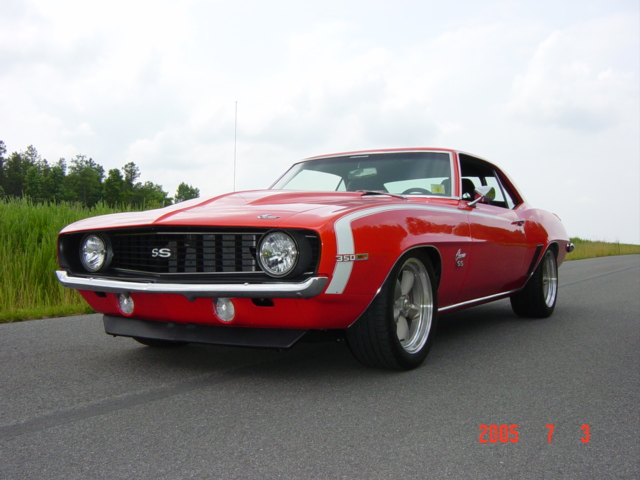

Paint: Hugger Orange Wheels:
Vintage Wheel Works 17x8 front � 17x9.5 rear
Tires: 245/40/17 front � 275/45/17 rear

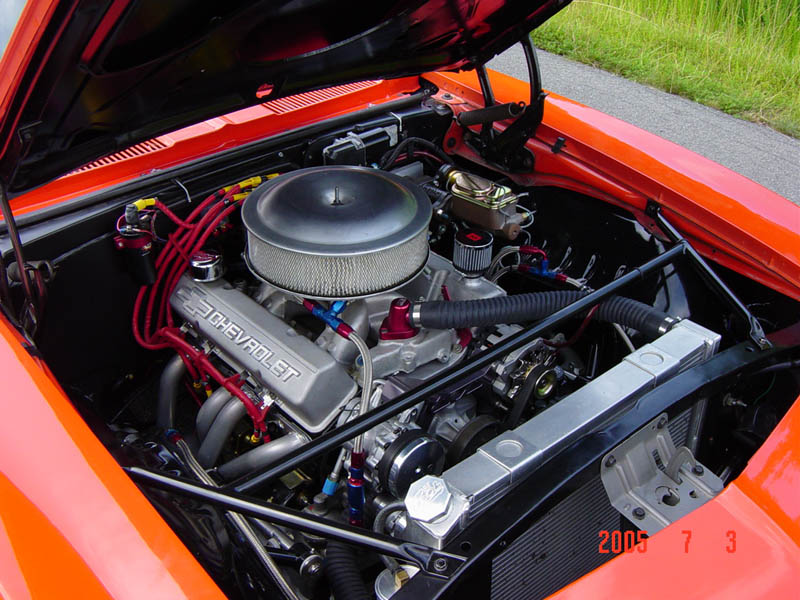

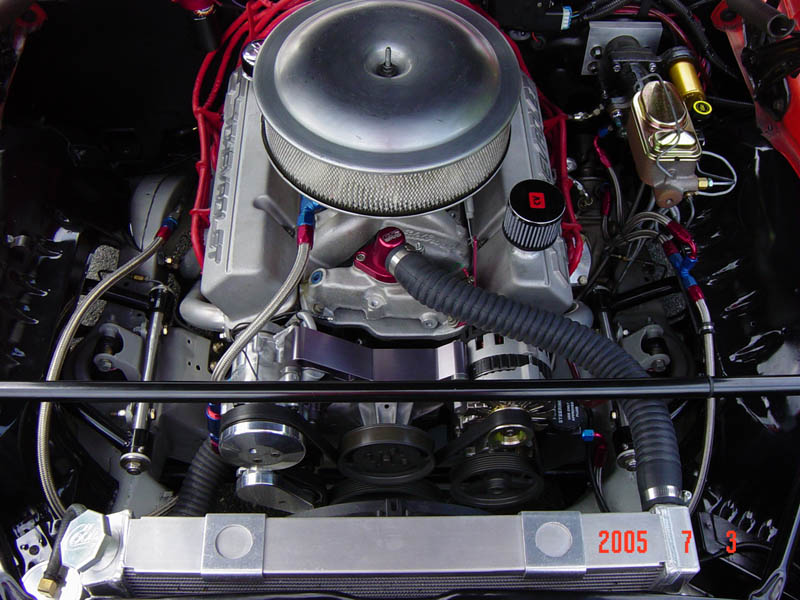

Engine: 355 cubic inch small block � 470 HP @6300
Transmission: Tremec TKO-600 5-speed
Rear Differential: GM 12 bolt positive traction w/ 3.73 gear ratio
Brakes: Baer track system in front (13� cross-drilled/Zinc washed
rotors), touring system in rear (12� cross-drilled/Zinc washed rotors) with
Hydratech�s hydraulic brake booster
Shocks: Koni adjustable coil-over front and adjustable conventional style
in rear
Suspension Modifications
Subframe converted to coil-over front suspension using the (DSE) Detroit
Speed & Engineering coil-over conversion kit
DSE tubular upper control arms
DSE subframe connectors
AGR custom valved 12:1 power steering box
DSE tubular tie-rod sleeves
1 1/8� sway bar
DSE steel sleeves with Delrin bushings in lower control arms
DSE aluminum solid body mounts w/ stainless bolts
Hotchkis 2� drop multi-leaf springs in rear with �� aluminum lowering
blocks
Ididit tilt steering column w/Borgeson joint that replaces stock rag joint
for increased strength and feel

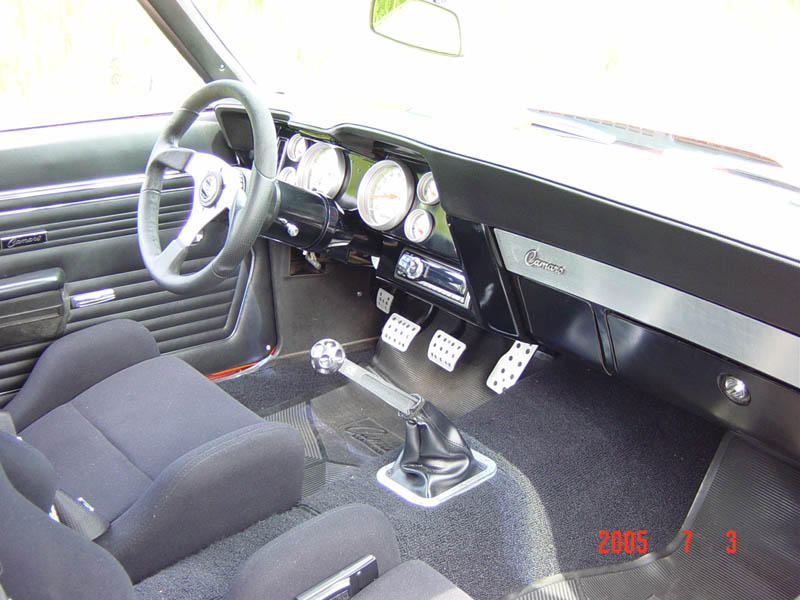

Interior Modifications

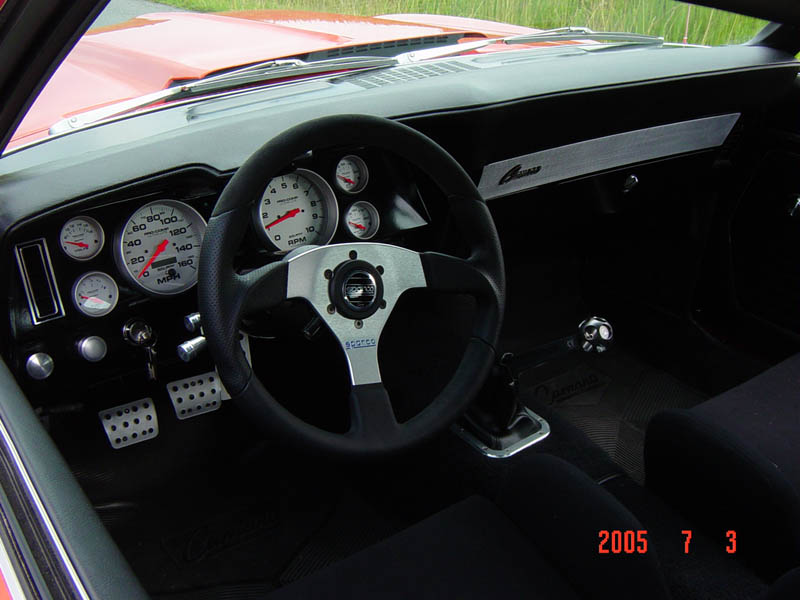

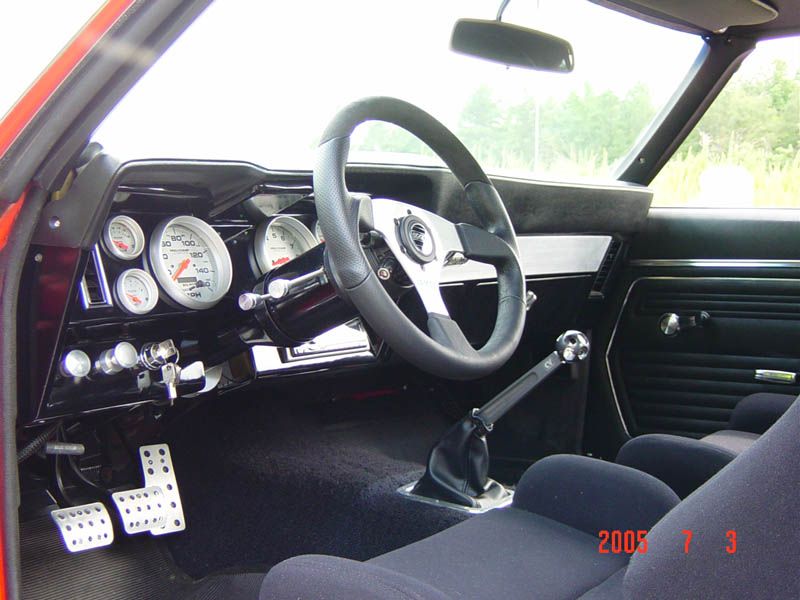

DSE steel custom dash - Autometer gauges with LED bulbs and ignition moved
to dash
DSE hoop bar with removable cross bar
Custom made aluminum pedal covers

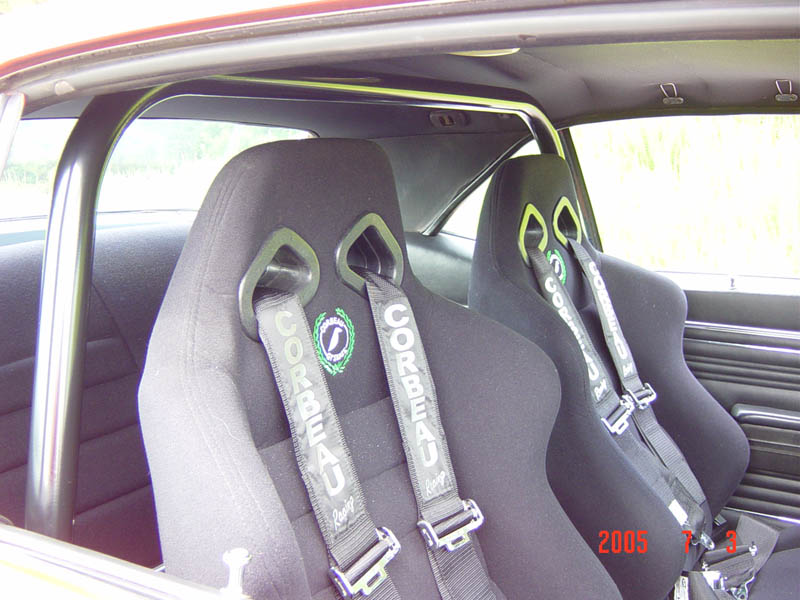

Corbeau TRS seats w/ 3� racing harnesses
Dynamat Xtreme insulation installed throughout car to reduce road noise &
vibrations
Sparco removable steering wheel
CV Products aluminum shifter stick and ball
Stock backseat re-covered to match front Corbeau seats.
Other Modifications
Firewall smoothed in stock heater coil location.
Car rewired with Painless Wiring 18 circuit harness and GM weatherpack
connectors used for easy disconnects
Vintage Air Front-Runner serpentine pulley system
DSE power steering pump & reservoir
Be Cool 4-core aluminum radiator w/ Spal electric fan
DSE selecta-speed wiper
DSE modern headlight kit
DSE aluminum trunk battery mount w/ Optima battery
Flowmaster 2 �� H-pipe exhaust system connected to 1 5/8� Hooker Super
Comps w/ceramic coating
Marquez Design�s Billet marker plates. Tail light markers are on the way.
|
