This is an original
390 4 speed car. Cool car to begin with but it needed to be stepped up a notch.
Engine
390 ported stock heads with oversize valves Ford aluminum PI intake and Factory
CJ Holley 735 carb. Recurved stock distributor with pertronix ignitor triggering
an MSD digital 6 CD box through an MSD blaster coil and wires. Solid lifter cam
research cam 230/236 @ .050 with 560 lift and matching springs and retainers,
double roller timing chain, Precision oil pumps rockers, stands and shafts and
smith pushrods. Precision oil Pumps blueprinted high volume oil pump and billet
pump drive shaft. Canton T road race baffeled pan. Stock 11 to 1 shortblock for
now. I have FPA headers waiting in the garage and plan on having Spintech
install a side exit 2.5� exhaust with X crossover.
Trans
Currently I have the stock close ratio toplader in the car but I have a TKO 600,
Mcleod aluminum flywheel, driveline specialties Kevlar clutch sitting in the
garage.
Differential
Factory Ford nine inch with a Detroit locker and 3.70 gears.
Front suspension

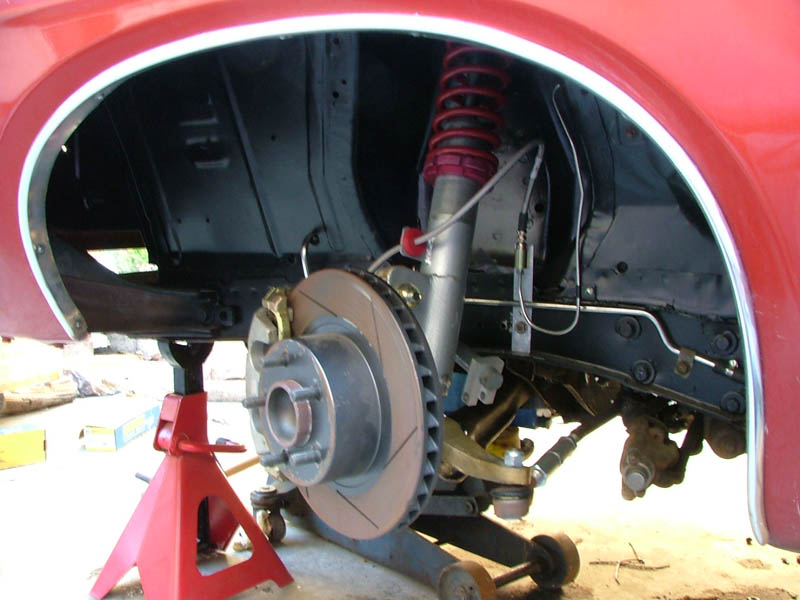

RRS Koni coilover strut conversion with 12� discs with PBR dual piston calipers.
TCP strut rods and Opentracker racing Road race lower control arms. Stambar
adjustable 1� front sway bar.
Rear suspension

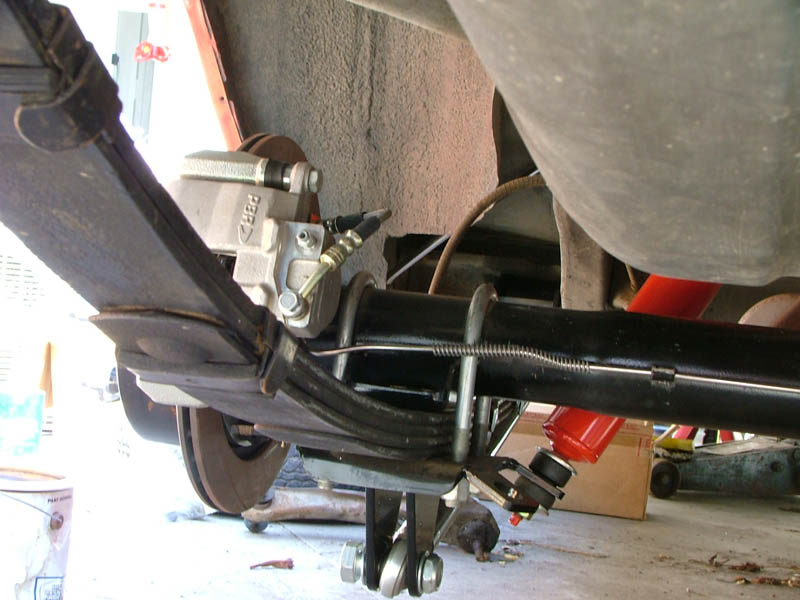

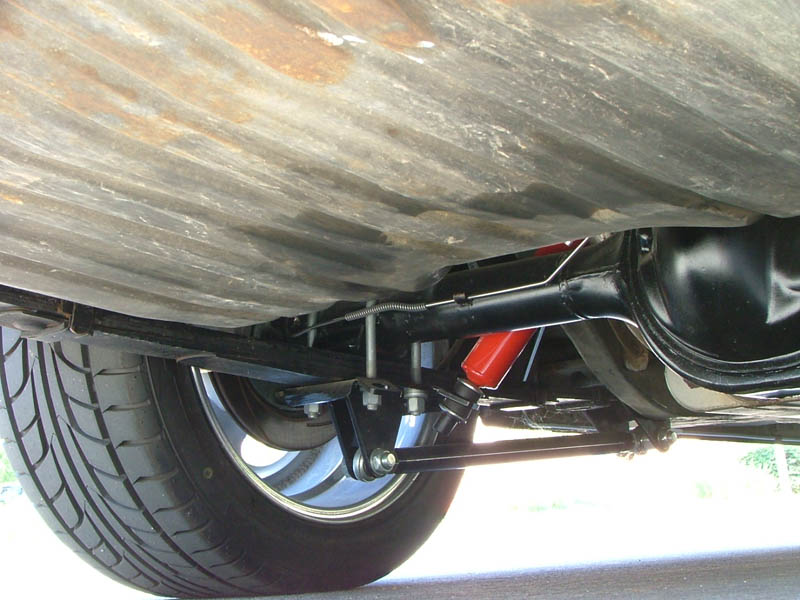

Rebuilt and rearched stock leafs with Koni red shocks. Caltracks low profile
underside bars. Solid front spring eye bushings and urethane rear bushings. 11�
RRS rear disc brakes with single piston PBR calipers. I have spoke with FAYs2
about building me a WATTS link for my rear. It is on it�s way.
Stock power brake booster with a Willwood aluminum 1.125 master and all new
stainless brake lines.

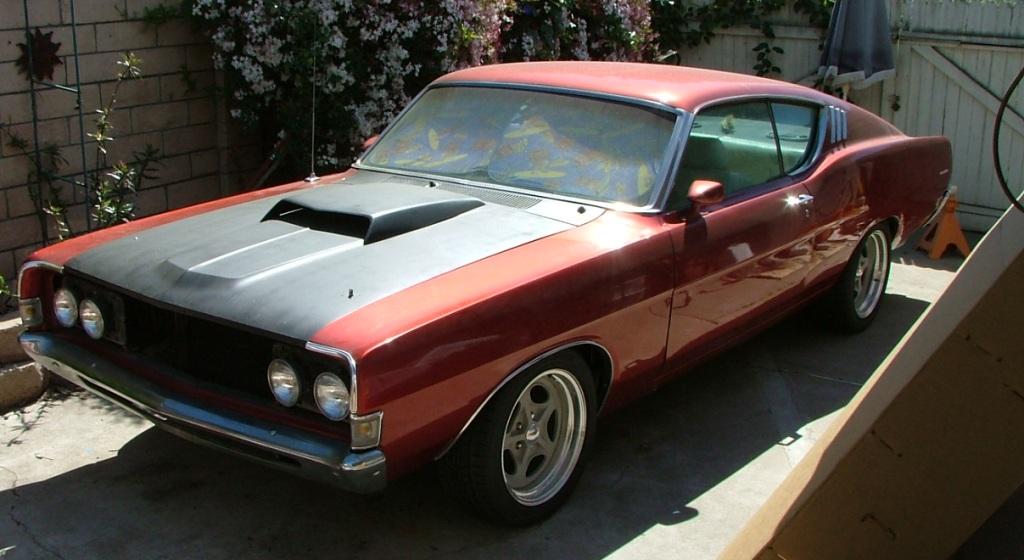

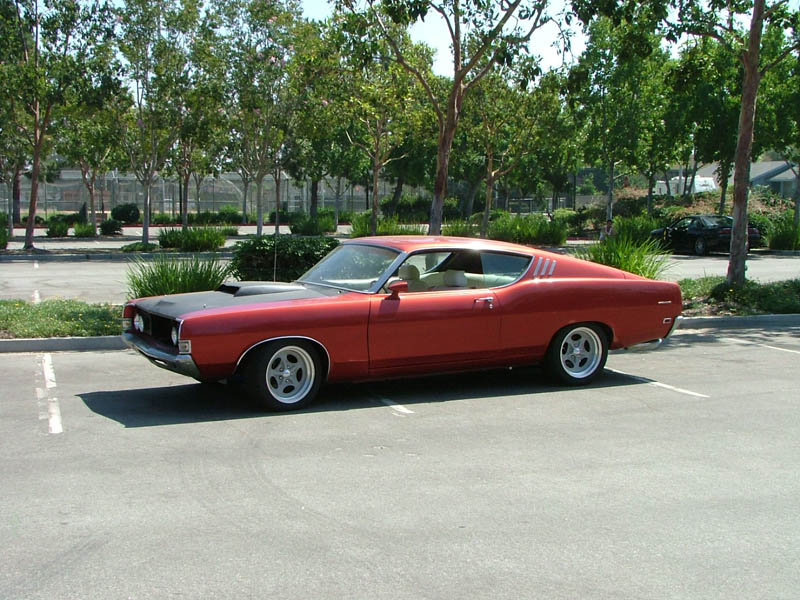

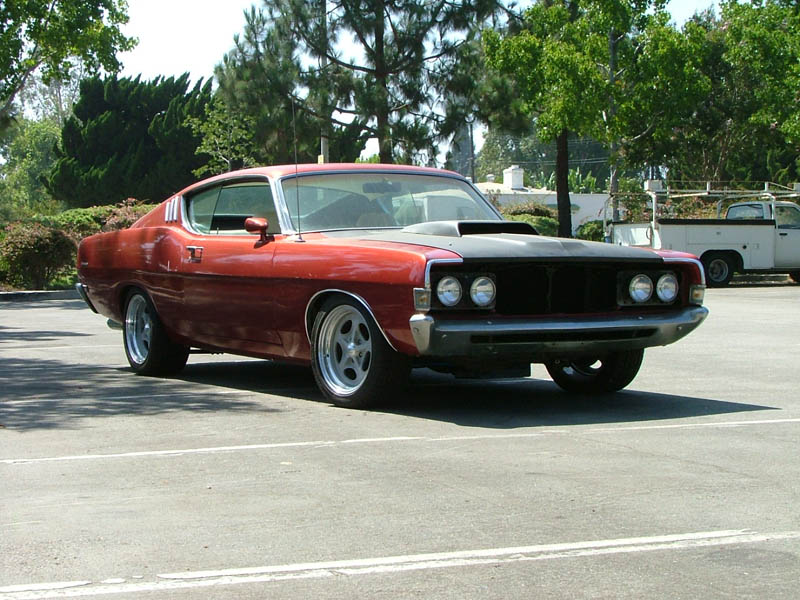

The car sits 2� lower in the rear and 3� lower in the front and rides on some
custom Elaisian wheels. 17x8 front with 245/45/17 Firestone Firehawks and 17x9.5
rear with 285/40/17 Firestones
I�m swapping a 3g 130 amp alternator in this weekend and then working on
designing some subframe connectors. When I done sorting out the suspension and
driveline I want to paint the car the original Jade Black color but will still
do the hood and taillight panel in the flat black (I sprayed them that way as an
experiment for the look).
