Ryan Barichello's 69 Camaro

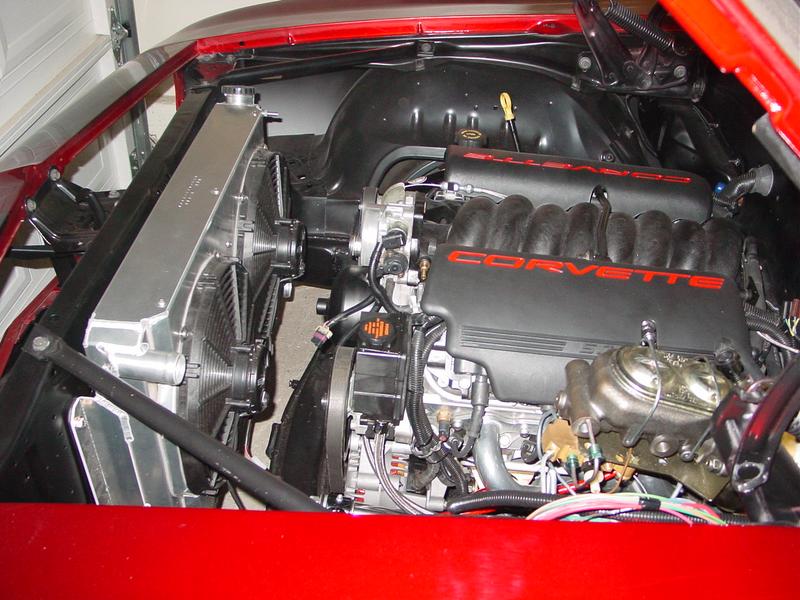

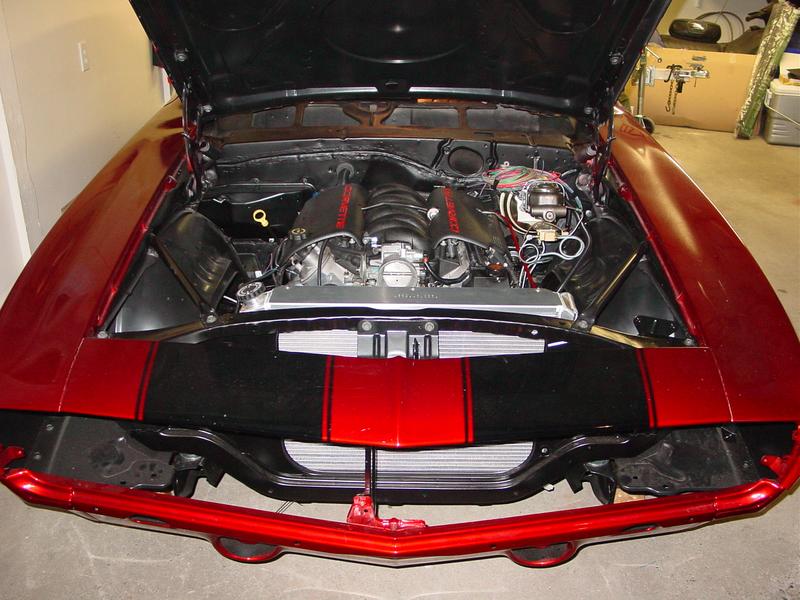

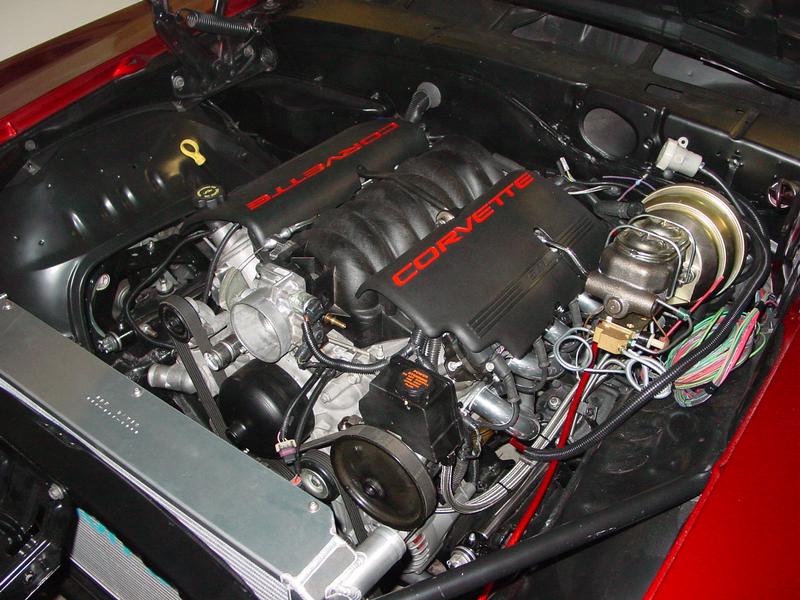

It's sporting a 2002 LS1-T56, TSP 233/239 cam, PRC dual valve spring kit, with TSP tune, ASP pullies, LS6 intake (stock), shorty S&P headers

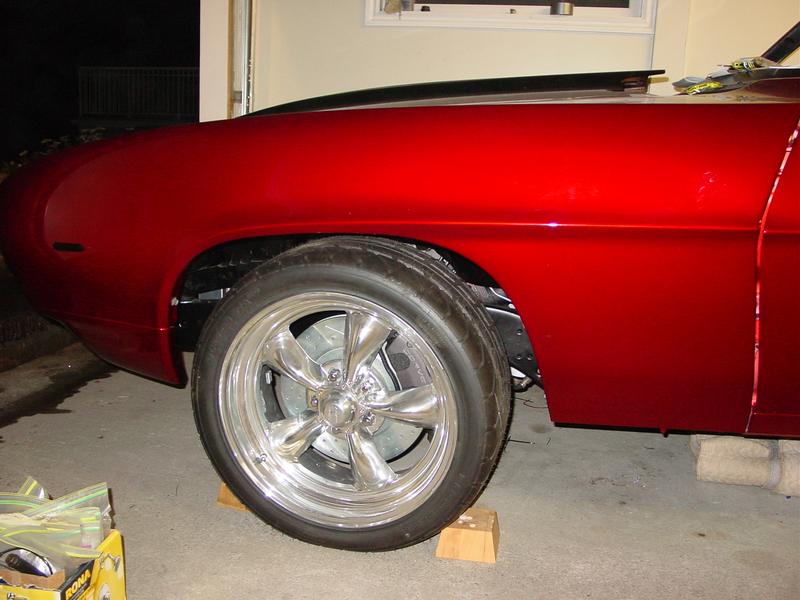

18x8 f, 18x10 r ARE TTII's, 245-45-18 f, 275-40-18 r BFG G-force KD's

12-bolt Auburn Posi w/ 3.73's and girdle

Suspension techniques dropped leafs & swaybars, Edelbrock rear shocks

Baer rear brakes & 13" C5 fronts (drilled & slotted)

Spec stage III clutch, Hurst shifter, ATS T56 install kit, S&P LS1 motor mounts, headers & custom oil pan, AC delete

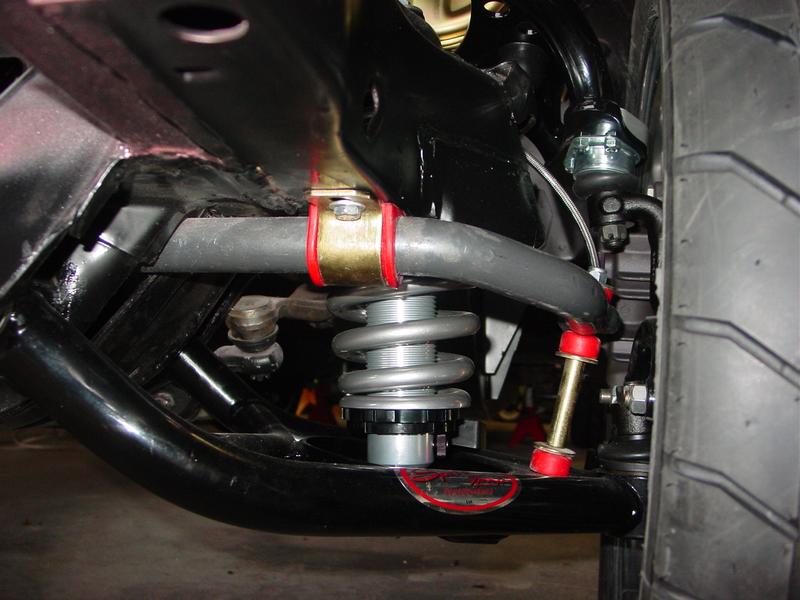

Speedtech tubular upper & lower control arms, QA1 adjustable coilovers

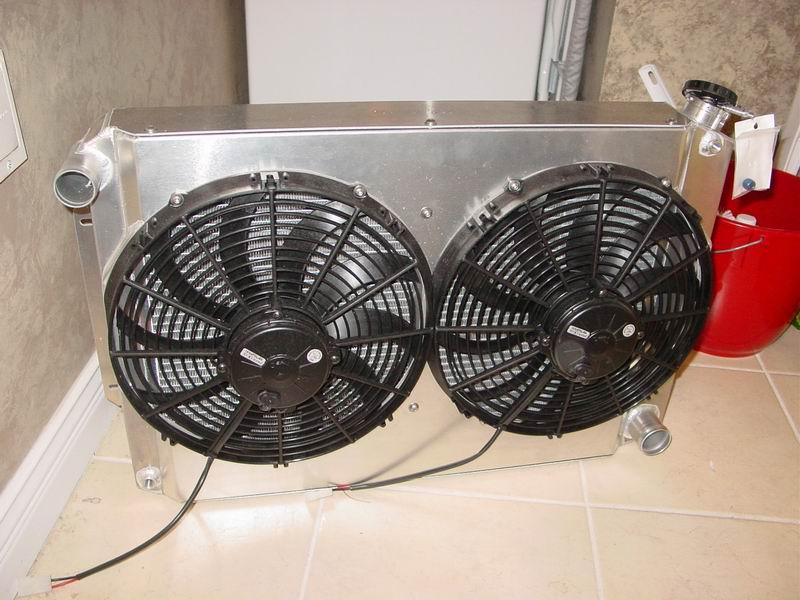

Ron Davis custom alum. rad with dual spal fans & custom shroud

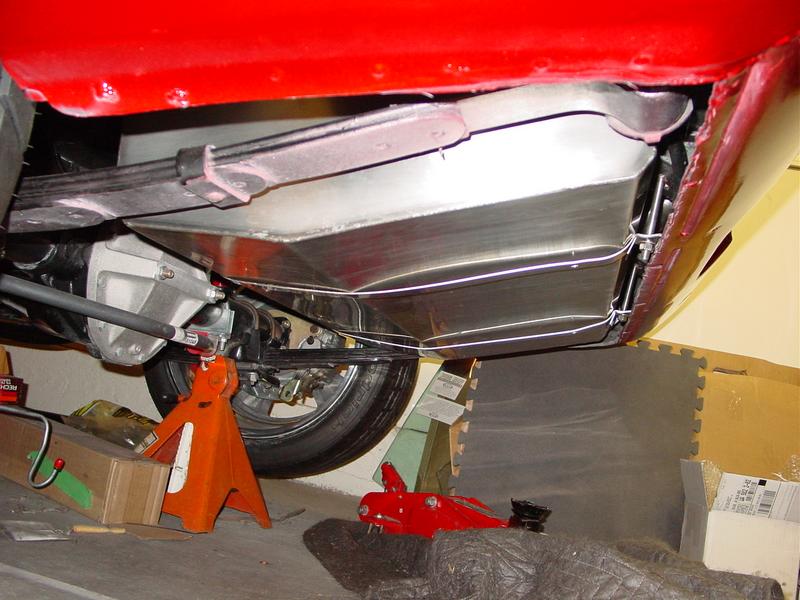

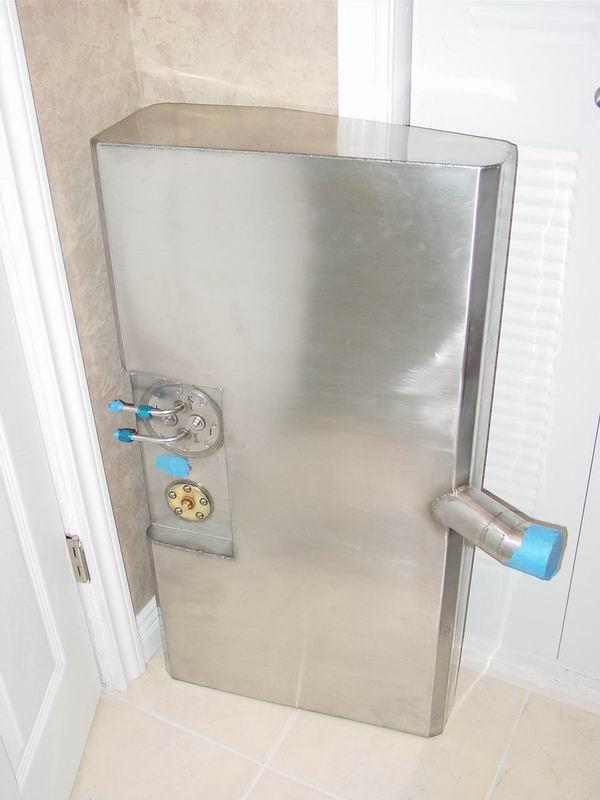

Ricks Hot Rod tank stainless steel with walbro intake pump, braided fuel lines throughout

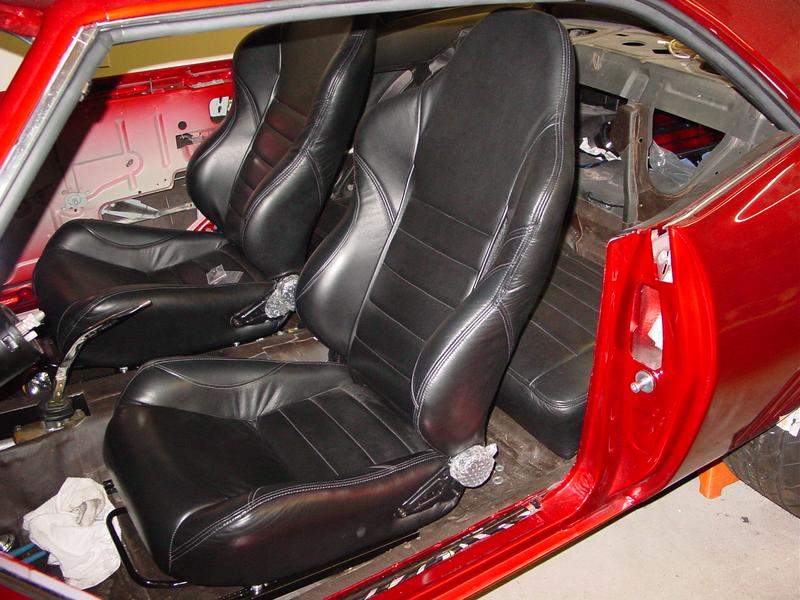

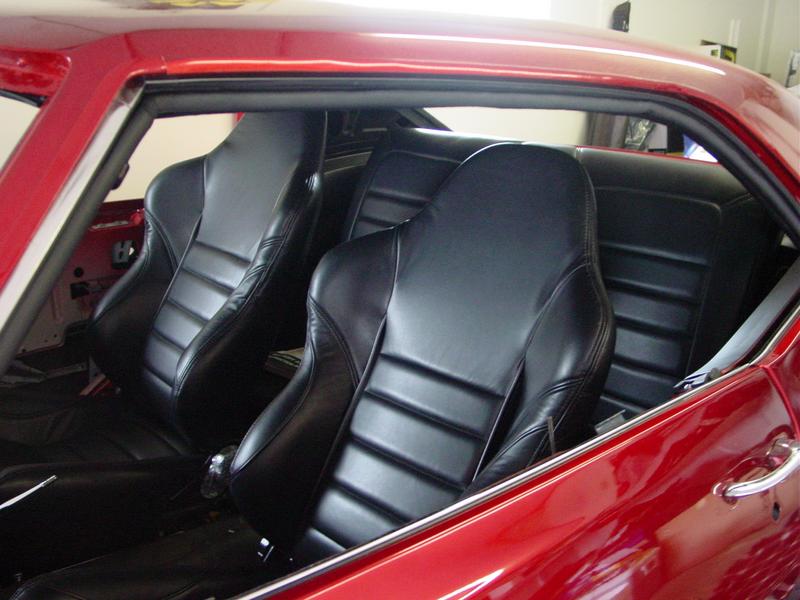

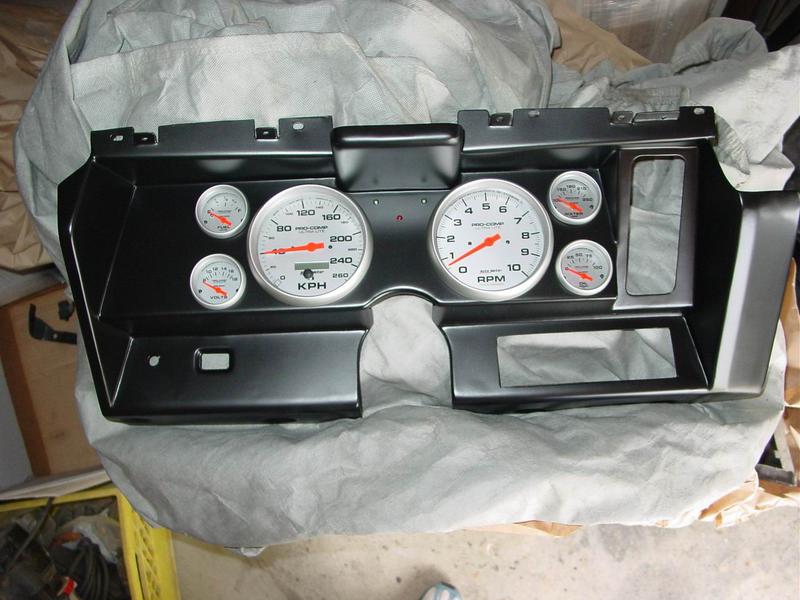

DSE dash with autometer guages, Sparco steering wheel, custom front & rear FULL leather seats, Speartech engine harness

Global west frame connectors.

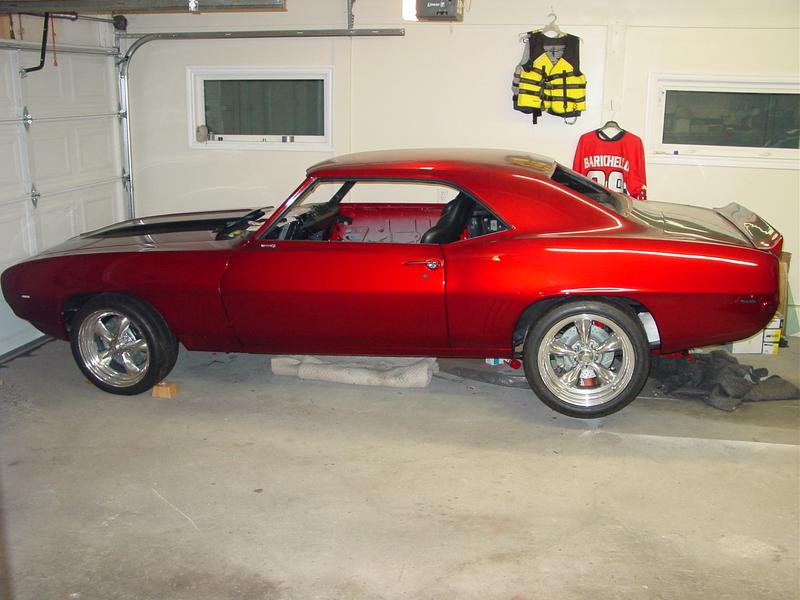

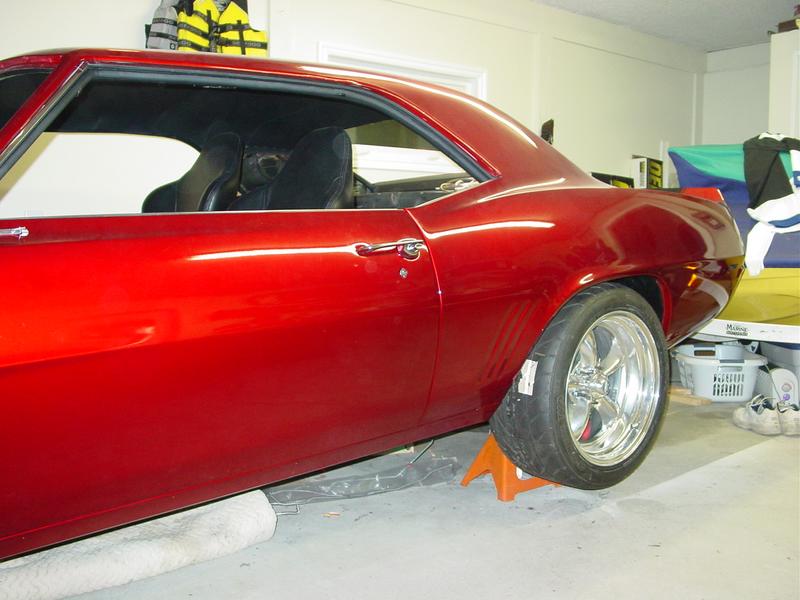

Color is a true Candy Apple red tri-coat with silver base, and black Z28 stripes.

The car is getting wired as we speak, and is very close to fire up. I'm hoping to put down 400 to the wheels and I'll be happy. Just need to finish the wiring and fuel lines, send it out to have the suspension setup (ride height, alignment) and will have a dual 2.5" magnaflow, X-pipe exhaust installed.
