randy 01-13-2013 10:41 AM
with the rear end lowered to a nice tucked stance were you ever concerned about hittting the bump stops? Im very very close on my 67 quadralink

Vegas69 01-13-2013 01:54 PM
Quote:
Originally Posted by formula88 (Post 457772)
Some project updates:

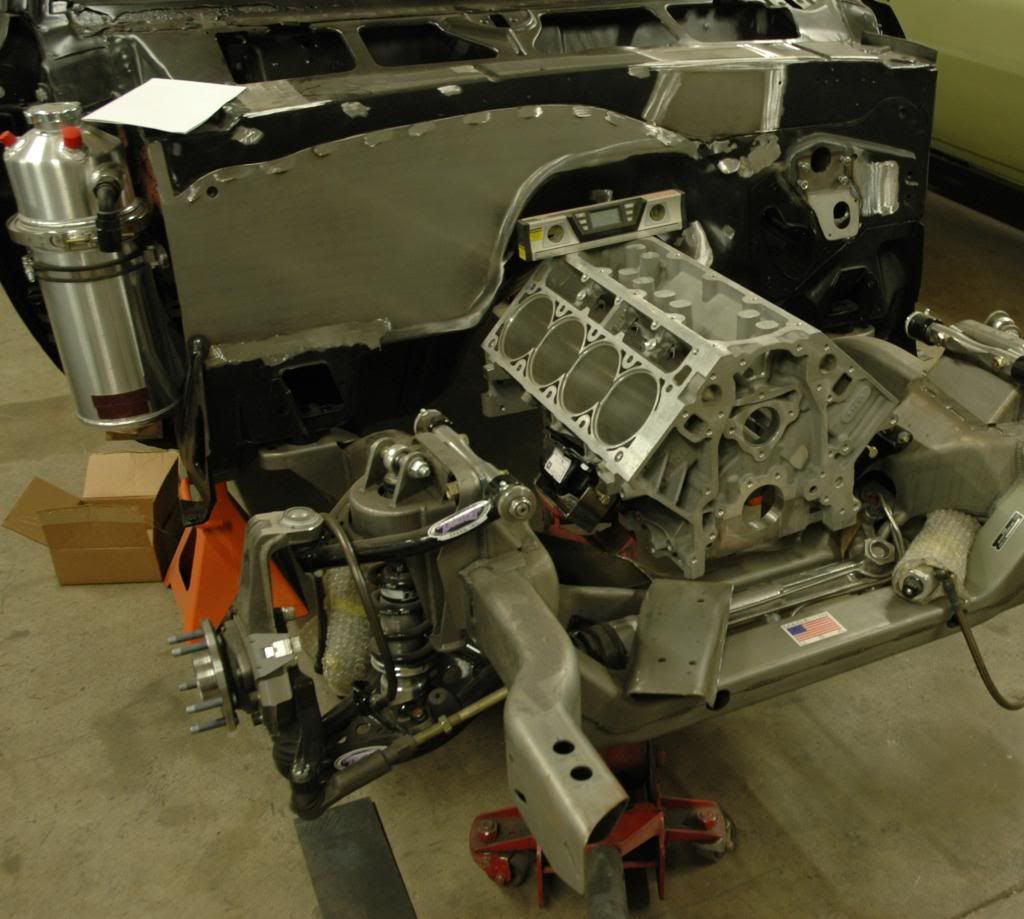

Mark modifies the passenger side of the subframe cross member to provide clearance for the AC compressor.
http://i1158.photobucket.com/albums/...ps8190844c.jpg

This requires rebuilding the engine mount pad and provides an good opportunity to improve vehicle refinement.

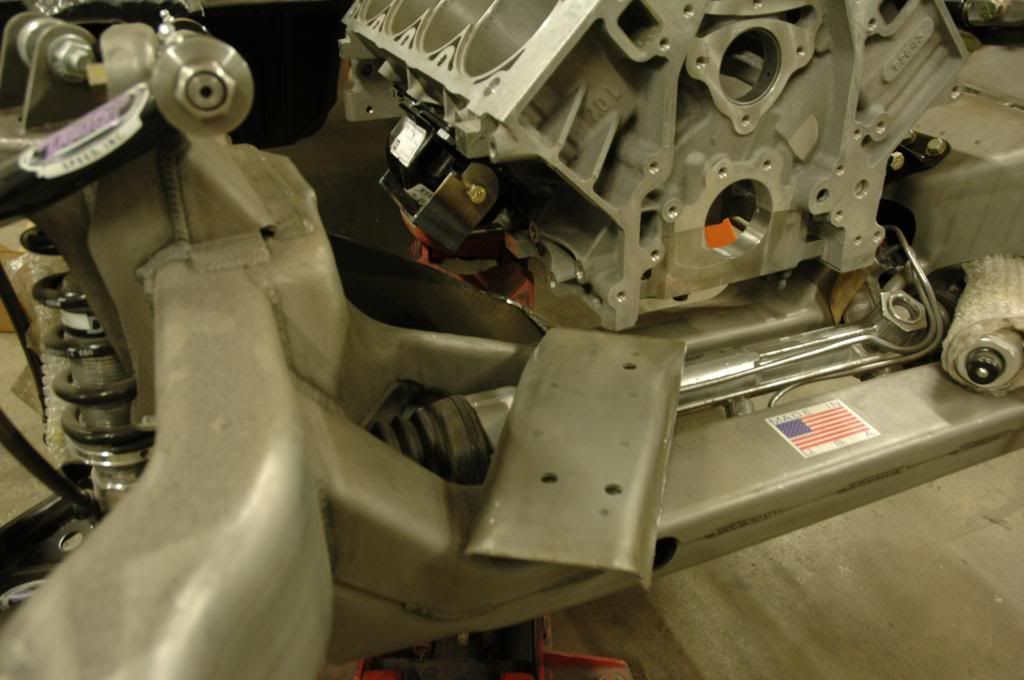

4th gen F-car OE engine mounts are being incorporated to reduce the noise and vibration over the aftermarket poly offerings.
http://i1158.photobucket.com/albums/...ps633c533b.jpg
I like the idea of utilizing a factory mount for less harmonic transfer into the chassis. That's one of the things I had thought of after building mine.:thumbsup:

Steve68 01-13-2013 07:04 PM
I have always planned on using modified rubber mounts to reduce vibration and engine noise into the interior of the car,

good idea!!

NvrDun71 01-17-2013 08:32 PM
Hey Mark was curious which AC bracket you use to mount the V/A compressor and still work with the GM ls9 front drive?

Stielow 01-18-2013 04:20 PM
Quote:
Originally Posted by NvrDun71 (Post 458756)
Hey Mark was curious which AC bracket you use to mount the V/A compressor and still work with the GM ls9 front drive?
The Concept One LS9 set up works great!

http://www.lsxtv.com/news/ls9-powere...ley-treatment/

Mark

NvrDun71 01-18-2013 05:35 PM
Quote:
Originally Posted by Stielow (Post 458894)
The Concept One LS9 set up works great!

http://www.lsxtv.com/news/ls9-powere...ley-treatment/

Mark
Thank you Sir, Looks like a nice setup! Appreciate you pushing the envelope and recruiting companies like this to step up on new products! :bow:

sixnina 01-20-2013 11:02 AM
Mark,
Are you going to continue to run Abs on this one too?
Shane

Stielow 01-20-2013 02:49 PM
Quote:
Originally Posted by sixnina (Post 459301)
Mark,
Are you going to continue to run Abs on this one too?
Shane
Yes I mounded the ABS module today so I plan on using it.

http://i439.photobucket.com/albums/q...psd1e268b1.jpg

tubbed69 01-20-2013 04:52 PM
Hello Mark,great work as always,I like the idea of moving the fuse box and harness coming thru the firewall and curios where your mounting it because I was wanting to do that to mine,thanks.

next69 01-20-2013 05:40 PM
Please post a finished image of the subframe with the compressor and engine mount in place. Keep up the good work.
